BL 61 Volvo BL 61 Specifications & Technical Data (2006—2011)

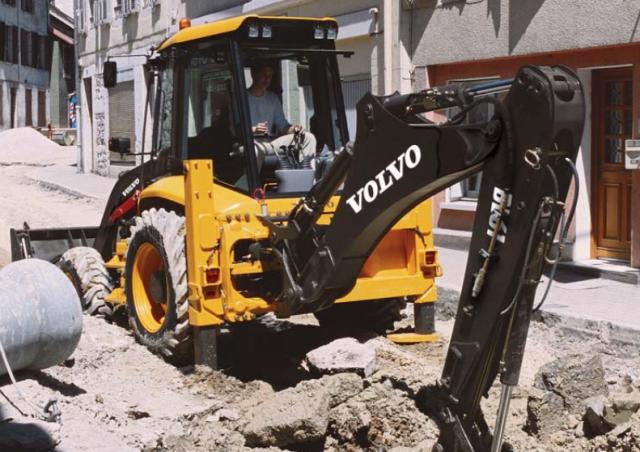

The Volvo BL 61 is a backhoe loader manufactured by Volvo from 2006 to 2011. It has a weight of 8.168 tons and a transport length …

The Volvo BL 61 is a backhoe loader manufactured by Volvo from 2006 to 2011. It has a weight of 8.168 tons and a transport length of 5.832 meters. The bucket capacity is 1.3 cubic meters, with a tear-out force of 43.9 kN. It can dredge up to a depth of 4.28 meters and has a bucket width of 2.35 meters. The maximum discharge height is 5.582 meters, and it has a maximum reach horizontal of 7.18 meters. The travel speed of the machine is 37 km/h. It has a transport width of 2.477 meters and a transport height of 3.71 meters. The backhoe bucket capacity is 0.21 cubic meters.

Backhoe Loaders Volvo BL 61

Visit Volvo live at

Technical specs - BL 61 Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.17 t
Standard tyres
F:12.5/80-18. R:16.9-28
Bucket width
2.35 m
Bucket capacity
1.3 m³
Bucket capacity backhoe
0.21 m³
Drive
A
Transport length
5.83 m
Transport width
2.48 m
Transport height
3.71 m
Tear-out force
43.9 kN
Max. Reach horizontal
7.18 m
Dredging depth
4.28 m
Max. discharge height
5.58 m
Travel speed
37 km/h
Engine manuf.
Volvo
Engine type
D4D
Engine power
64 kW
Displacement
4.04 l
Revolutions at max torque
2200 rpm
Max. torque
390 Nm
No. of cylinders
4

More technical details, like: tear-out force backhoe, model series, dimension lxwxh, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
No
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download datasheets (PDF)

Volvo BL 61 FAQ

When was the Volvo BL 61 manufactured?

The Volvo BL 61 was manufactured from 2006 to 2011.

How much does the Volvo BL 61 backhoe loader weigh?

The Volvo BL 61 backhoe loader weighs 8.17 tons.

What are the transport dimensions of the Volvo BL 61 backhoe loader?

The Volvo BL 61 has transport dimensions of 5.83 meters in length, 2.48 meters in width, and 3.71 meters in height.

What is the travel speed of the Volvo BL 61 backhoe loader?

The Volvo BL 61 backhoe loader has a travel speed of 37 km/h.

What are the undercarriage specifications of the Volvo BL 61 backhoe loader?

The Volvo BL 61 backhoe loader has an all-wheel drive and is equipped with front tyres sized 12.5/80-18 and rear tyres sized 16.9-28.

What are the dredging depth and maximum horizontal reach of the Volvo BL 61 backhoe loader?

The Volvo BL 61 backhoe loader has a dredging depth of 4.28 meters and a maximum horizontal reach of 7.18 meters.

What is the tear-out force of the Volvo BL 61 backhoe loader?

The Volvo BL 61 backhoe loader has a tear-out force of 43.9 kN.

What is the material handling capacity of the Volvo BL 61 in terms of discharge height?

The Volvo BL 61 has a maximum discharge height of 5.58 meters.

What are the specifications of the primary work tools on the Volvo BL 61 backhoe loader?

The Volvo BL 61 has a front bucket capacity of 1.3 cubic meters with a width of 2.35 meters, and a backhoe bucket capacity of 0.21 cubic meters.

How much is a Volvo BL 61 Backhoe loader (2006u20132011) worth?

The residual value of the Volvo BL 61 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
