Volvo 616 Specifications & Technical Data (1974-1976)

Name: Volvo 616 Backhoe Loaders
Brand: Volvo

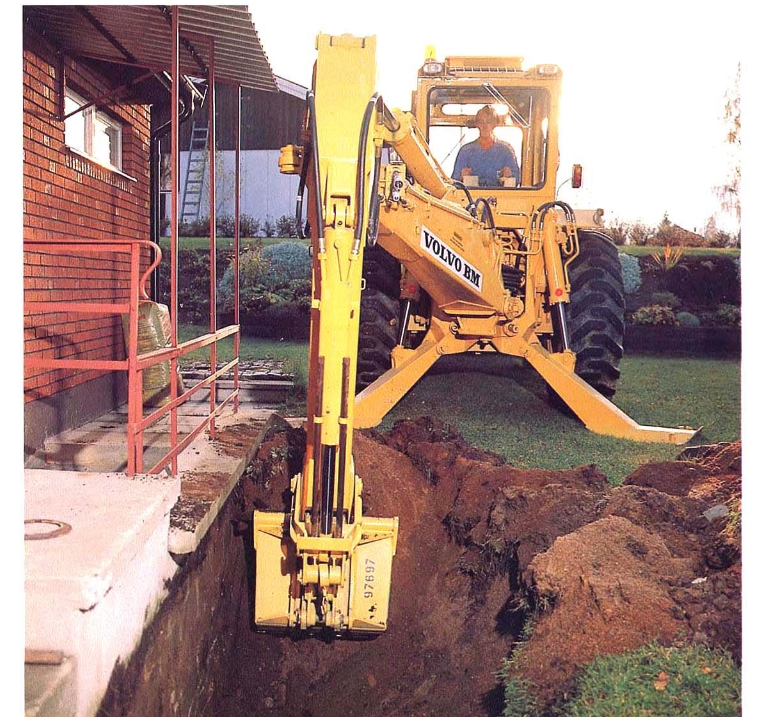

The Volvo 616 Backhoe Loader, manufactured from 1974 to 1976, is a construction machine with a weight of 8.3 tons. It has a transp…

The Volvo 616 Backhoe Loader, manufactured from 1974 to 1976, is a construction machine with a weight of 8.3 tons. It has a transport length of 8.13 meters and a bucket capacity of 0.28 cubic meters. With a maximum reach of 4.2 meters horizontally, it can travel at a speed of 29.7 km/h. The transport height of this machine is 4.1 meters.

616

Years of manufacture: 1974—1976

Data sheet
Buy & Rent
Spare parts
Transport
Events & News

Technical specs - 616 Volvo

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 8.3 t

Standard tyres: F:10-20/12. R:18.4-30/12

Bucket capacity: 0.28 m³

Drive: A

Transport length: 8.13 m

Transport height: 4.1 m

Max. Reach horizontal: 4.2 m

Travel speed: 29.7 km/h

Engine manuf.: Volvo

Engine type: BM D42

Engine power: 59 kW

Displacement: 4.2 l

Revolutions at max torque: 2300 rpm

Max. torque: 265 Nm

No. of cylinders: 4

Cylinder bore x stroke: 105.57x120 mm

More technical details, like: bucket width, bucket capacity backhoe, transport width, tear-out force, tear-out force backhoe, dredging depth, max. discharge height, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: No
Clamshell: No
Forklift utility: No
Grabber: No
Diesel particulate filter: No
Aircondition: No
