8.23 G Venieri 8.23 G Specifications & Technical Data (2020—2026)

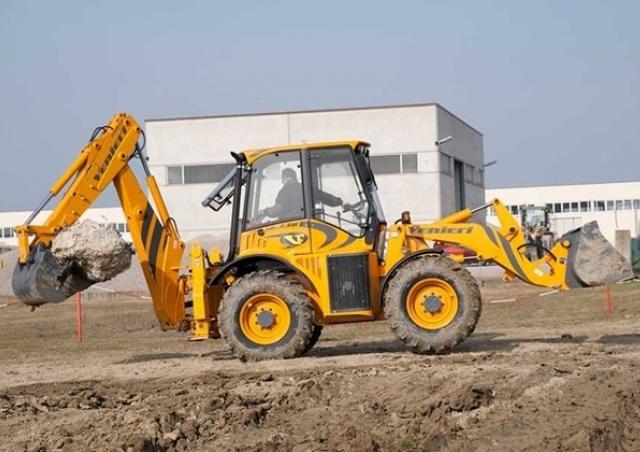

The Venieri 8.23 G is a backhoe loader manufactured by Venieri since 2020. It has a weight of 8.49 tons and a transport length of …

The Venieri 8.23 G is a backhoe loader manufactured by Venieri since 2020. It has a weight of 8.49 tons and a transport length of 6.05 meters. The bucket capacity is 1.4 cubic meters, with a tear-out force of 69 kilonewtons. It can dredge up to a depth of 4.6 meters and has a bucket width of 2.2 meters. The maximum discharge height is 3.4 meters, and it has a maximum reach horizontal of 8 meters. The backhoe loader has a transport width of 2.2 meters and a transport height of 3.5 meters. Additionally, it is equipped with air conditioning, a clamshell, a diesel particulate filter, a forklift utility, a grabber, and outrigger stabilizers.

8.23 G

Years of manufacture: 2020—2026

Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 8.23 G Venieri

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 7.5 t

Standard tyres: 16/70-24

Bucket width: 2.2 m

Bucket capacity: 1.1 m³

Bucket capacity backhoe: 0.15 m³

Drive: A

Transport length: 5.9 m

Transport width: 2.2 m

Transport height: 3.5 m

Tear-out force: 67.7 kN

Tear-out force backhoe: 44.72 kN

Max. Reach horizontal: 8 m

Dredging depth: 4.6 m

Max. discharge height: 3.36 m

Travel speed: 40 km/h

Engine manuf.: Deutz

Engine type: TCD3.6 L4

Engine power: 78 kW

Displacement: 3.6 l

Revolutions at max torque: 2300 rpm

Max. torque: 410 Nm

No. of cylinders: 4

Cylinder bore x stroke: 98x120 mm

Emission level: V

More technical details, like: model series, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: Yes
Clamshell: Yes
Forklift utility: Yes
Grabber: Yes
Diesel particulate filter: Yes
Aircondition: Yes

Venieri 8.23 G FAQ

When was the Venieri 8.23 G manufactured?

The Venieri 8.23 G was first produced in 2020.

How much does the Venieri 8.23 G weigh?

The Venieri 8.23 G weighs 7.5 tons.

What are the transport dimensions of the Venieri 8.23 G backhoe loader?

The Venieri 8.23 G has a transport length of 5.9 meters, a transport width of 2.2 meters, and a transport height of 3.5 meters.

What is the travel speed of the Venieri 8.23 G backhoe loader?

The Venieri 8.23 G backhoe loader has a travel speed of 40 km/h.

What are the undercarriage specifications of the Venieri 8.23 G backhoe loader?

The Venieri 8.23 G backhoe loader features an all-wheel drive system and standard tyres sized 16/70-24.

What is the excavation performance of the Venieri 8.23 G backhoe loader?

The Venieri 8.23 G backhoe loader has a dredging depth of 4.6 meters and a maximum horizontal reach of 8 meters.

What are the tear-out forces of the Venieri 8.23 G backhoe loader?

The Venieri 8.23 G has a tear-out force of 67.7 kN and a backhoe tear-out force of 44.72 kN.

What is the maximum discharge height of the Venieri 8.23 G?

The Venieri 8.23 G has a maximum discharge height of 3.36 meters.

What are the specifications of the primary work tools on the Venieri 8.23 G backhoe loader?

The Venieri 8.23 G features a loader bucket with a capacity of 1.1 cubic meters and a width of 2.2 meters, and a backhoe bucket with a capacity of 0.15 cubic meters.
