TX970B Terex TX970B Specifications & Technical Data (2005—2023)

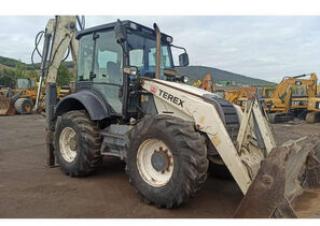

The Terex TX970B is a backhoe loader manufactured by Terex since 2005. It has a weight of 8.029 tons and a transport length of 7.3…

The Terex TX970B is a backhoe loader manufactured by Terex since 2005. It has a weight of 8.029 tons and a transport length of 7.3 meters. The bucket capacity is 1 cubic meter, with a dredging depth of 4.46 meters and a bucket width of 2.31 meters. The machine can reach a maximum discharge height of 5.75 meters and a maximum horizontal reach of 5.87 meters. It has a travel speed of 41.6 km/h and a transport width of 2.3 meters. The transport height is 4 meters.

Backhoe Loaders Terex TX970B

Technical specs - TX970B Terex

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.029 t
Standard tyres
16.9X24
Bucket width
2.31 m
Bucket capacity
1 m³
Drive
A
Transport length
7.3 m
Transport width
2.3 m
Transport height
4 m
Max. Reach horizontal
5.87 m
Dredging depth
4.46 m
Max. discharge height
5.75 m
Travel speed
41.6 km/h
Engine manuf.
Perkins
Engine type
1104C-44TH
Engine power
74.8 kW
Displacement
4.4 l
Revolutions at max torque
1400 rpm
Max. torque
395 Nm

More technical details, like: bucket capacity backhoe, tear-out force, tear-out force backhoe, model series, dimension lxwxh, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
No
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download datasheets (PDF)

Terex TX970B FAQ

When was the Terex TX970B manufactured?

The Terex TX970B was manufactured from 2005 to 2023.

How much does the Terex TX970B backhoe loader weigh?

The Terex TX970B backhoe loader weighs 8.03 tons.

What are the transport dimensions of the Terex TX970B backhoe loader?

The Terex TX970B has a transport length of 7.3 meters, a transport width of 2.3 meters, and a transport height of 4 meters.

What is the travel speed of the Terex TX970B backhoe loader?

The Terex TX970B backhoe loader has a travel speed of 41.6 km/h.

What are the undercarriage specifications of the Terex TX970B backhoe loader?

The Terex TX970B backhoe loader has an all-wheel drive system and is equipped with standard tyres sized 16.9X24.

What are the excavation performance specifications of the Terex TX970B backhoe loader?

The Terex TX970B has a dredging depth of 4.46 meters and a maximum horizontal reach of 5.87 meters.

What is the material handling capacity of the Terex TX970B in terms of discharge height?

The Terex TX970B has a maximum discharge height of 5.75 meters.

What are the bucket specifications of the Terex TX970B backhoe loader?

The Terex TX970B backhoe loader has a bucket capacity of 1 cubic meter and a bucket width of 2.31 meters.
