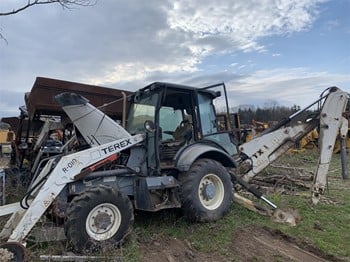

TX860 B Terex TX860 B Specifications & Technical Data (2005—2023)

The Terex TX860 B is a backhoe loader manufactured by Terex since 2005. It has a weight of 7.241 tons and a transport length of 7.…

The Terex TX860 B is a backhoe loader manufactured by Terex since 2005. It has a weight of 7.241 tons and a transport length of 7.2 meters. The bucket capacity is 1 cubic meter, with a dredging depth of 4.5 meters and a bucket width of 2.31 meters. The machine can reach a maximum discharge height of 5.7 meters and a maximum horizontal reach of 5.9 meters. It has a travel speed of 36.2 km/h and a transport width of 2.3 meters. The transport height is 3.7 meters.

TX860 B

Years of manufacture: 2005—2023

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - TX860 B Terex

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 7.241 t

Standard tyres: F:12.5/80X18. R:19.5LX24

Bucket width: 2.31 m

Bucket capacity: 1 m³

Drive: A

Transport length: 7.2 m

Transport width: 2.3 m

Transport height: 3.7 m

Max. Reach horizontal: 5.9 m

Dredging depth: 4.5 m

Max. discharge height: 5.7 m

Travel speed: 36.2 km/h

Engine manuf.: Perkins

Engine type: 1004-40T

Engine power: 71.5 kW

Displacement: 3.9 l

Revolutions at max torque: 1400 rpm

Max. torque: 375 Nm

More technical details, like: bucket capacity backhoe, tear-out force, tear-out force backhoe, model series, dimension lxwxh, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: No
Clamshell: No
Forklift utility: No
Grabber: No
Diesel particulate filter: No
Aircondition: No

Download datasheets (PDF)

Terex TX860 B FAQ

When was the Terex TX860 B manufactured?

The Terex TX860 B was manufactured from 2005 to 2023.

How much does the Terex TX860 B backhoe loader weigh?

The Terex TX860 B backhoe loader weighs 7.24 tons.

What are the transport dimensions of the Terex TX860 B backhoe loader?

The Terex TX860 B has a transport length of 7.2 meters, a transport width of 2.3 meters, and a transport height of 3.7 meters.

What is the travel speed of the Terex TX860 B backhoe loader?

The Terex TX860 B backhoe loader has a travel speed of 36.2 km/h.

What are the undercarriage specifications of the Terex TX860 B backhoe loader?

The Terex TX860 B features an all-wheel drive system with standard tyres sized Front: 12.5/80X18 and Rear: 19.5LX24.

What are the excavation performance specifications of the Terex TX860 B backhoe loader?

The Terex TX860 B backhoe loader has a dredging depth of 4.5 meters and a maximum horizontal reach of 5.9 meters.

What is the material handling capacity of the Terex TX860 B in terms of maximum discharge height?

The Terex TX860 B has a maximum discharge height of 5.7 meters.

What are the specifications of the primary work tool bucket on the Terex TX860 B?

The primary work tool bucket of the Terex TX860 B has a capacity of 1 cubic meter and a width of 2.31 meters.
