TX640 Terex TX640 Specifications & Technical Data (2002—2023)

The Terex TX640 is a backhoe loader manufactured by Terex since 2002. It has a weight of 4.723 tons and a transport length of 4.65…

The Terex TX640 is a backhoe loader manufactured by Terex since 2002. It has a weight of 4.723 tons and a transport length of 4.65 meters. The bucket capacity is 0.85 cubic meters with a width of 2.03 meters. The maximum discharge height is 4.08 meters. It has a travel speed of 28.2 km/h. The transport width and height are both 2.03 and 2.39 meters respectively.

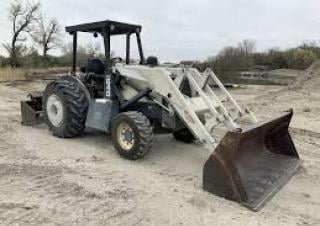

Backhoe Loaders Terex TX640

Technical specs - TX640 Terex

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.723 t
Standard tyres
16.9X24
Bucket width
2.03 m
Bucket capacity
0.85 m³
Drive
A
Transport length
4.65 m
Transport width
2.03 m
Transport height
2.39 m
Max. discharge height
4.08 m
Travel speed
28.2 km/h
Engine manuf.
Perkins
Engine type
1004-42
Engine power
50 kW
Displacement
4.2 l
Revolutions at max torque
1200 rpm
Max. torque
273 Nm
No. of cylinders
4
Cylinder bore x stroke
103x127 mm

More technical details, like: bucket capacity backhoe, tear-out force, tear-out force backhoe, max. reach horizontal, dredging depth, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
No
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download datasheets (PDF)

Terex TX640 FAQ

When was the Terex TX640 manufactured?

The Terex TX640 was manufactured from 2002 until 2023.

How much does the Terex TX640 backhoe loader weigh?

The Terex TX640 backhoe loader weighs 4.72 tons.

What are the transport dimensions of the Terex TX640 backhoe loader?

The Terex TX640 has a transport length of 4.65 meters, a transport width of 2.03 meters, and a transport height of 2.39 meters.

What is the travel speed of the Terex TX640 backhoe loader?

The Terex TX640 backhoe loader has a travel speed of 28.2 km/h.

What are the undercarriage specifications of the Terex TX640 backhoe loader?

The Terex TX640 backhoe loader has an all-wheel drive system and is equipped with standard tyres sized 16.9X24.

What is the maximum discharge height of the Terex TX640?

The Terex TX640 has a maximum discharge height of 4.08 meters.

What are the specifications of the primary work tool bucket on the Terex TX640 backhoe loader?

The primary work tool bucket on the Terex TX640 has a capacity of 0.85 cubic meters and a width of 2.03 meters.

How much is a Terex TX640 Backhoe loader (2002u20132023) worth?

The residual value of the Terex TX640 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
