TX 760 B Terex TX 760 B Specifications & Technical Data (2014—2017)

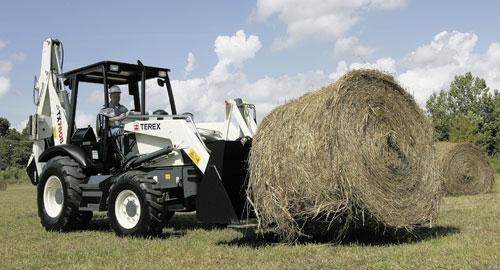

The Terex TX 760 B is a backhoe loader manufactured by Terex from 2014 to 2017. It has a weight of 6.89 tons and a bucket capacity…

The Terex TX 760 B is a backhoe loader manufactured by Terex from 2014 to 2017. It has a weight of 6.89 tons and a bucket capacity of 1 cubic meter. The tear-out force is 46.64 kilonewtons, and it can dredge up to a depth of 4.5 meters. The bucket width is 2.31 meters, and the maximum discharge height is 5.7 meters. It has a maximum reach horizontal of 3.5 meters and a travel speed of 37.5 kilometers per hour. The tear-out force for the backhoe is 37.05 kilonewtons.

TX 760 B

Years of manufacture: 2014—2017

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - TX 760 B Terex

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 6.89 t

Standard tyres: 12.5/80x18 10/19.5Lx24 10

Bucket width: 2.31 m

Bucket capacity: 1 m³

Drive: H

Tear-out force: 46.64 kN

Tear-out force backhoe: 37.05 kN

Max. Reach horizontal: 3.5 m

Dredging depth: 4.5 m

Max. discharge height: 5.7 m

Travel speed: 37.5 km/h

Model series: TX

Engine manuf.: Perkins

Engine type: 1104D-44T

Engine power: 70 kW

Displacement: 4.4 l

Revolutions at max torque: 2300 rpm

Max. torque: 392/1400 Nm

No. of cylinders: 4

Emission level: Tier 3/EU IIIA

More technical details, like: bucket capacity backhoe, transport length, transport width, transport height, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: No
Clamshell: No
Forklift utility: No
Grabber: No
Diesel particulate filter: No
Aircondition: No

Download datasheets (PDF)

TX 760 B Terex Specification for Europe (EN)

Terex TX 760 B FAQ

When was the Terex TX 760 B manufactured?

The Terex TX 760 B was manufactured from 2014 to 2017.

How much does the Terex TX 760 B backhoe loader weigh?

The Terex TX 760 B backhoe loader weighs 6.89 tons.

What is the travel speed of the Terex TX 760 B backhoe loader?

The Terex TX 760 B has a travel speed of 37.5 km/h.

What are the undercarriage specifications of the Terex TX 760 B backhoe loader?

The Terex TX 760 B backhoe loader has a rear wheel drive and comes with standard tyres sized 12.5/80x18 10/19.5Lx24 10.

What is the excavation performance of the Terex TX 760 B backhoe loader?

The Terex TX 760 B has a dredging depth of 4.5 meters and a maximum horizontal reach of 3.5 meters.

What are the power ratings of the Terex TX 760 B backhoe loader?

The Terex TX 760 B has a tear-out force of 46.64 kN and a backhoe tear-out force of 37.05 kN.

What is the maximum discharge height of the Terex TX 760 B?

The Terex TX 760 B has a maximum discharge height of 5.7 meters.

What are the bucket specifications of the Terex TX 760 B backhoe loader?

The Terex TX 760 B has a bucket capacity of 1 cubic meter and a bucket width of 2.31 meters.
