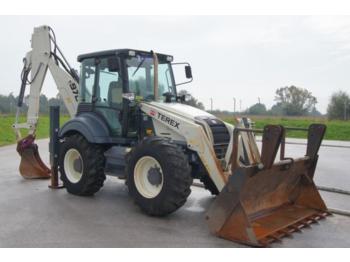

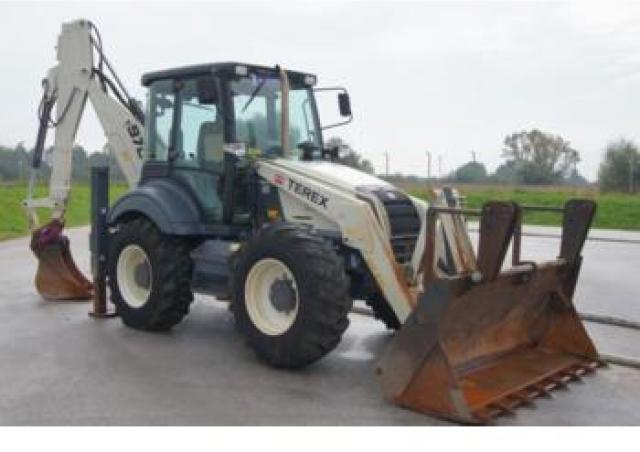

970 Terex 970 Specifications & Technical Data (2005—2023)
Technical specs - 970 Terex
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 7.537 t
- Standard tyres
- 16.9X24
- Bucket width
- 2.387 m
- Bucket capacity
- 1.2 m³
- Drive
- A
- Transport length
- 7.325 m
- Transport width
- 2.387 m
- Transport height
- 3.802 m
- Max. Reach horizontal
- 5.725 m
- Dredging depth
- 4.431 m
- Max. discharge height
- 5.699 m
- Travel speed
- 41.5 km/h
- Engine manuf.
- Perkins
- Engine type
- 1104C-44T
- Engine power
- 74.5 kW
- Displacement
- 4.4 l
- Revolutions at max torque
- 1400 rpm
- Max. torque
- 415 Nm
More technical details, like: bucket capacity backhoe, tear-out force, tear-out force backhoe, model series, dimension lxwxh, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket
Special equipment
- Outrigger stabilisers
-
No
- Clamshell
-
No
- Forklift utility
-
No
- Grabber
-
No
- Diesel particulate filter
-
No
- Aircondition
-
No
Download datasheets (PDF)
