860 elite Terex 860 elite Specifications & Technical Data (2007—2013)

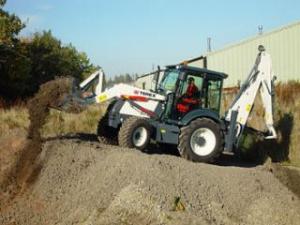

The Terex 860 elite is a backhoe loader manufactured by Terex from 2007 to 2013. It has a weight of 8.2 tons and a transport lengt…

The Terex 860 elite is a backhoe loader manufactured by Terex from 2007 to 2013. It has a weight of 8.2 tons and a transport length of 6.22 meters. The bucket capacity is 1.2 cubic meters, and it has a dredging depth of 4.43 meters. The bucket width is 2.39 meters, and the maximum discharge height is 3.58 meters. The machine has a maximum reach horizontal of 5.72 meters. The transport width and height are both 2.39 meters and 3.76 meters respectively. It is equipped with outrigger stabilizers.

860 elite

Years of manufacture: 2007—2013

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 860 elite Terex

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 8.2 t

Standard tyres: 16/70-20/16.9x30

Bucket width: 2.39 m

Bucket capacity: 1.2 m³

Drive: A

Transport length: 6.22 m

Transport width: 2.39 m

Transport height: 3.76 m

Max. Reach horizontal: 5.72 m

Dredging depth: 4.43 m

Max. discharge height: 3.58 m

Engine manuf.: Perkins

Engine type: 1104D-44T

Engine power: 75 kW

More technical details, like: bucket capacity backhoe, tear-out force, tear-out force backhoe, travel speed, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, backhoe type, engine manufacturer, engine model, emission rating, aspiration, rated speed, engine output - net, engine output - gross, torque, transmission type, number of travel speeds, drive - 2wd / 4wd, service brake type, length - roading, height - over cab, maximum height, width, ground clearance, width - standard shovel, stabiliser type, maximum dig depth - longest dipper, dig depth - sae, dig depth - sae retracted dipper, dig depth - sae extended dipper, reach from slew pivot - non-extending dipper, reach from slew pivot - retracted dipper, reach from slew pivot - extended dipper, loading height - non-extending dipper, loading height - retracted dipper, loading height - extended dipper, dump height - general purpose, dump angle - general purpose, dump height - multi-purpose, dump angle - multi-purpose, fuel tank, shovel capacity - standard general purpose, shovel capacity - multi-purpose, bucket tearout - non-extending dipper, dipper tearout - non-extending dipper, shovel breakout - general purpose, shovel breakout - multi-purpose, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: Yes
Clamshell: No
Forklift utility: No
Grabber: No
Diesel particulate filter: No
Aircondition: No

Download datasheets (PDF)

Terex 860 elite FAQ

When was the Terex 860 elite manufactured?

The Terex 860 elite was manufactured from 2007 to 2013.

How much does the Terex 860 elite backhoe loader weigh?

The Terex 860 elite backhoe loader weighs 8.2 tons.

What are the transport dimensions of the Terex 860 elite backhoe loader?

The Terex 860 elite has a transport length of 6.22 meters, a transport width of 2.39 meters, and a transport height of 3.76 meters.

What are the undercarriage specifications of the Terex 860 elite backhoe loader?

The Terex 860 elite backhoe loader has an all-wheel drive system and standard tyres sized 16/70-20/16.9x30.

What are the excavation performance specifications of the Terex 860 elite backhoe loader?

The Terex 860 elite has a dredging depth of 4.43 meters and a maximum horizontal reach of 5.72 meters.

What is the maximum discharge height of the Terex 860 elite?

The maximum discharge height of the Terex 860 elite is 3.58 meters.

What are the specifications of the primary work tool on the Terex 860 elite backhoe loader?

The primary work tool of the Terex 860 elite backhoe loader has a bucket capacity of 1.2 cubic meters and a bucket width of 2.39 meters.
