860 Terex 860 Specifications & Technical Data (2005—2023)

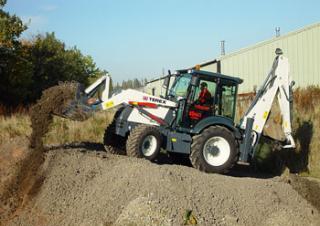

The Terex 860 is a backhoe loader manufactured by Terex since 2005. It has a weight of 16.214 tons and a transport length of 7.338…

The Terex 860 is a backhoe loader manufactured by Terex since 2005. It has a weight of 16.214 tons and a transport length of 7.338 meters. The bucket capacity is 1 cubic meter, with a dredging depth of 4.438 meters and a bucket width of 2.311 meters. The maximum discharge height is 5.692 meters, and it has a maximum reach horizontal of 5.726 meters. The travel speed of this backhoe loader is 40 kilometers per hour. It has a transport width of 2.311 meters and a transport height of 3.762 meters.

Backhoe Loaders Terex 860

Technical specs - 860 Terex

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
16.21 t
Standard tyres
F:16/70X20. R: 18.4X26
Bucket width
2.31 m
Bucket capacity
1 m³
Drive
A
Transport length
7.34 m
Transport width
2.31 m
Transport height
3.76 m
Max. Reach horizontal
5.726 m
Dredging depth
4.438 m
Max. discharge height
5.69 m
Travel speed
40 km/h
Engine manuf.
Perkins
Engine type
1104C-44T
Engine power
74.5 kW
Displacement
4.4 l
Revolutions at max torque
1400 rpm
Max. torque
415 Nm

More technical details, like: bucket capacity backhoe, tear-out force, tear-out force backhoe, model series, dimension lxwxh, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
No
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download datasheets (PDF)

Terex 860 FAQ

When was the Terex 860 manufactured?

The Terex 860 was manufactured from 2005 to 2023.

How much does the Terex 860 backhoe loader weigh?

The Terex 860 backhoe loader weighs 16.21 tons.

What are the transport dimensions of the Terex 860 backhoe loader?

The Terex 860 backhoe loader has a transport length of 7.34 meters, a transport width of 2.31 meters, and a transport height of 3.76 meters.

What is the travel speed of the Terex 860 backhoe loader?

The Terex 860 backhoe loader has a travel speed of 40 km/h.

What are the undercarriage specifications of the Terex 860 backhoe loader?

The Terex 860 backhoe loader features an all-wheel drive system with standard tyres sized Front: 16/70X20 and Rear: 18.4X26.

What are the excavation performance specifications of the Terex 860 backhoe loader?

The Terex 860 backhoe loader has a dredging depth of 4.438 meters and a maximum horizontal reach of 5.726 meters.

What is the maximum discharge height of the Terex 860 backhoe loader for material handling?

The Terex 860 backhoe loader has a maximum discharge height of 5.69 meters for material handling.

What are the bucket specifications of the Terex 860 backhoe loader?

The Terex 860 backhoe loader has a bucket capacity of 1 cubic meter and a bucket width of 2.31 meters.

How much is a Terex 860 Backhoe loader (2005u20132023) worth?

The residual value of the Terex 860 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
