SWB30-25F Sinoway SWB30-25F Specifications & Technical Data (2018—2025)

The Sinoway SWB30-25F is a backhoe loader manufactured by Sinoway since 2018. It has a weight of 7 tons and a transport length of …

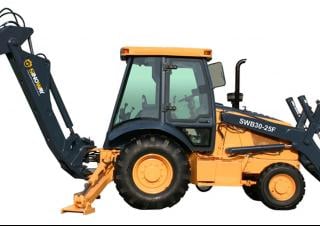

The Sinoway SWB30-25F is a backhoe loader manufactured by Sinoway since 2018. It has a weight of 7 tons and a transport length of 6.97 meters. The bucket capacity is 1 cubic meter, with a tear-out force of 59.6 kilonewtons. It can dredge up to a depth of 4.44 meters and has a bucket width of 2.26 meters. The maximum discharge height is 3.554 meters, and it has a maximum reach horizontal of 5.443 meters. The travel speed of this backhoe loader is 40.2 kilometers per hour. It has a transport width of 2.28 meters and a transport height of 2.876 meters. Additionally, it is equipped with air conditioning and outrigger stabilizers. The backhoe bucket capacity is 0.22 cubic meters, and it has a tear-out force of 58.2 kilonewtons.

Backhoe Loaders Sinoway SWB30-25F

Technical specs - SWB30-25F Sinoway

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7 t
Standard tyres
12-16.5NHS/19.5L-24R4
Bucket width
2.26 m
Bucket capacity
1 m³
Bucket capacity backhoe
0.22 m³
Drive
A
Transport length
6.97 m
Transport width
2.28 m
Transport height
2.876 m
Tear-out force
59.6 kN
Tear-out force backhoe
58.2 kN
Max. Reach horizontal
5.443 m
Dredging depth
4.44 m
Max. discharge height
3.554 m
Travel speed
40.2 km/h
Model series
SWB
Engine manuf.
Perkins
Engine type
N/A
Engine power
74.5 kW
No. of cylinders
4

More technical details, like: dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
Yes
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
Yes

Download datasheets (PDF)

Sinoway SWB30-25F FAQ

When was the Sinoway SWB30-25F manufactured?

The Sinoway SWB30-25F was first produced in 2018.

How much does the Sinoway SWB30-25F backhoe loader weigh?

The Sinoway SWB30-25F backhoe loader weighs 7 tons.

What are the transport dimensions of the Sinoway SWB30-25F backhoe loader?

The Sinoway SWB30-25F has a transport length of 6.97 meters, a transport width of 2.28 meters, and a transport height of 2.88 meters.

What is the travel speed of the Sinoway SWB30-25F backhoe loader?

The Sinoway SWB30-25F backhoe loader has a travel speed of 40.2 km/h.

What are the undercarriage specifications of the Sinoway SWB30-25F backhoe loader?

The Sinoway SWB30-25F backhoe loader features an all-wheel drive system and standard tyres sized 12-16.5NHS and 19.5L-24R4.

What are the excavation performance specifications of the Sinoway SWB30-25F backhoe loader?

The Sinoway SWB30-25F has a dredging depth of 4.44 meters and a maximum horizontal reach of 5.443 meters.

What are the tear-out force specifications of the Sinoway SWB30-25F backhoe loader?

The Sinoway SWB30-25F has a tear-out force of 59.6 kN and a backhoe tear-out force of 58.2 kN.

What is the maximum discharge height of the Sinoway SWB30-25F?

The Sinoway SWB30-25F has a maximum discharge height of 3.55 meters.

What are the specifications of the primary work tools on the Sinoway SWB30-25F backhoe loader?

The Sinoway SWB30-25F has a front loader bucket with a capacity of 1 cubic meter and a width of 2.26 meters, and a backhoe bucket with a capacity of 0.22 cubic meters.
