PBL480S PowerPlus PBL480S Specifications & Technical Data (2017—2026)

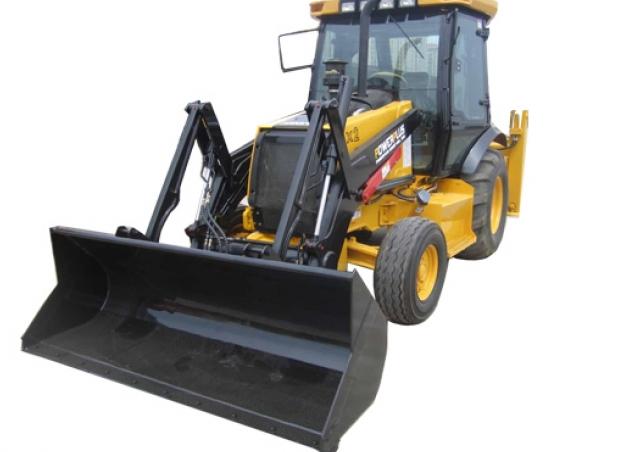

The PowerPlus PBL480S is a backhoe loader manufactured by PowerPlus since 2017. It has a weight of 8 tons and a transport length o…

The PowerPlus PBL480S is a backhoe loader manufactured by PowerPlus since 2017. It has a weight of 8 tons and a transport length of 5.8 meters. The bucket capacity is 1 cubic meter, with a dredging depth of 4.365 meters. The maximum discharge height is 3.51 meters, and it has a maximum reach horizontal of 5.39 meters. The transport width is 2.313 meters, and the transport height is 3.548 meters. This construction machine is equipped with outrigger stabilizers as its special equipment. The backhoe bucket capacity is 0.2 cubic meters.

PBL480S

Years of manufacture: 2017—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - PBL480S PowerPlus

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 8 t

Standard tyres: front:11L-16.5NHS-10PR/rear:19.5L-24R4-12PR

Bucket capacity: 1 m³

Bucket capacity backhoe: 0.2 m³

Drive: A

Transport length: 5.8 m

Transport width: 2.31 m

Transport height: 3.55 m

Max. Reach horizontal: 5.39 m

Dredging depth: 4.365 m

Max. discharge height: 3.51 m

Model series: PBL

Engine manuf.: PowerPlus

Engine type: C110

Engine power: 82 kW

More technical details, like: bucket width, tear-out force, tear-out force backhoe, travel speed, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: Yes
Clamshell: No
Forklift utility: No
Grabber: No
Diesel particulate filter: No
Aircondition: No

Download datasheets (PDF)

PBL480S PowerPlus Specification for Europe (EN)

PowerPlus PBL480S FAQ

When was the PowerPlus PBL480S manufactured?

The PowerPlus PBL480S was first produced in 2017.

How much does the PowerPlus PBL480S backhoe loader weigh?

The PowerPlus PBL480S backhoe loader weighs 8 tons.

What are the transport dimensions of the PowerPlus PBL480S backhoe loader?

The PowerPlus PBL480S has a transport length of 5.8 meters, a transport width of 2.31 meters, and a transport height of 3.55 meters.

What are the undercarriage specifications of the PowerPlus PBL480S backhoe loader?

The PowerPlus PBL480S features an all-wheel drive and comes equipped with standard tyres sized Front: 11L-16.5NHS-10PR and Rear: 19.5L-24R4-12PR.

What are the excavation performance specifications of the PowerPlus PBL480S backhoe loader?

The PowerPlus PBL480S has a dredging depth of 4.365 meters and a maximum horizontal reach of 5.39 meters.

What is the material handling capacity of the PowerPlus PBL480S in terms of discharge height?

The PowerPlus PBL480S has a maximum discharge height of 3.51 meters.

What are the bucket capacities of the PowerPlus PBL480S backhoe loader?

The PowerPlus PBL480S has a front bucket capacity of 1 cubic meter and a backhoe bucket capacity of 0.2 cubic meters.

How much is a PowerPlus PBL480S Backhoe loader (2017u20132025) worth?

The residual value of the PowerPlus PBL480S depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
