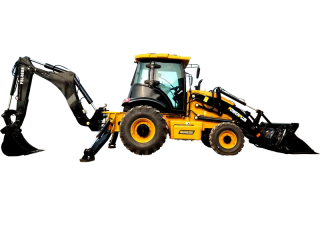

PowerPlus PBL480R
- Weight:
- 8.2 t
- Standard tyres:
- front: 14-17.5/rear: 19.5L-24
- Bucket width:
- 2 m
- Bucket capacity:
- 1 m³
PBL480R PowerPlus PBL480R Specifications & Technical Data (2026—2026)
Technical specs - PBL480R PowerPlus
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 8.2 t
- Standard tyres
- front: 14-17.5/rear: 19.5L-24
- Bucket width
- 2 m
- Bucket capacity
- 1 m³
- Bucket capacity backhoe
- 0.2 m³
- Transport length
- 6.23 m
- Transport width
- 2.365 m
- Transport height
- 3.752 m
- Tear-out force
- 39 kN
- Max. Reach horizontal
- 5.3 m
- Dredging depth
- 4 m
- Travel speed
- 30 km/h
- Model series
- PBL
- Engine manuf.
- PowerPlus
- Engine type
- C100
- Engine power
- 82 kW
- Displacement
- 4.7 l
- Max. torque
- 356 Nm
- No. of cylinders
- 4
- Cylinder bore x stroke
- 102x120 mm
- Emission level
- Stage III
More technical details, like: drive, tear-out force backhoe, max. discharge height, dimension lxwxh, revolutions at max torque are available in the full technical specs.
Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket
Special equipment
- Outrigger stabilisers
-
Yes
- Clamshell
-
No
- Forklift utility
-
No
- Grabber
-
No
- Diesel particulate filter
-
No
- Aircondition
-
Yes
