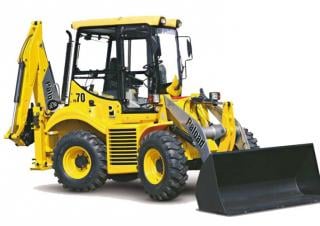

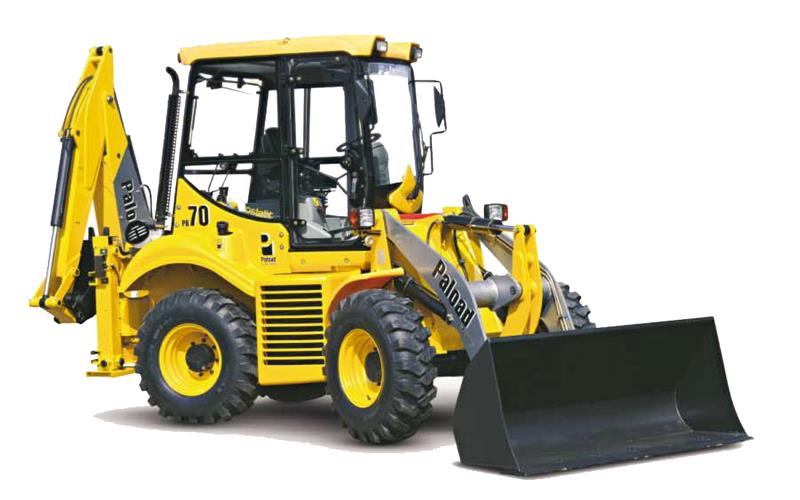

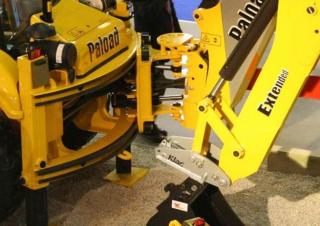

PB 70 Palazzani PB 70 Specifications & Technical Data (2009—2017)

The Palazzani PB 70 is a backhoe loader manufactured by Palazzani from 2009 to 2017. It has a weight of 6.35 tons and a transport …

The Palazzani PB 70 is a backhoe loader manufactured by Palazzani from 2009 to 2017. It has a weight of 6.35 tons and a transport length of 5.45 meters. The bucket capacity is 1 cubic meter, with a tear-out force of 65 kilonewtons. It can dredge up to a depth of 4.2 meters and has a bucket width of 2 meters. The maximum discharge height is 4.5 meters, and it can reach a maximum horizontal distance of 4.7 meters. The transport width is 2 meters, and the transport height is 3.14 meters. It is equipped with special features such as a clamshell and outrigger stabilizers.

PB 70

Years of manufacture: 2009—2017

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - PB 70 Palazzani

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 6.35 t

Standard tyres: 14.5x20

Bucket width: 2 m

Bucket capacity: 1 m³

Transport length: 5.45 m

Transport width: 2 m

Transport height: 3.14 m

Tear-out force: 65 kN

Max. Reach horizontal: 4.7 m

Dredging depth: 4.2 m

Max. discharge height: 4.5 m

Model series: PB

Engine manuf.: Perkins

Engine type: 1104D-44T

Engine power: 75 kW

More technical details, like: bucket capacity backhoe, drive, tear-out force backhoe, travel speed, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, backhoe type, engine manufacturer, engine model, aspiration, rated speed, engine output - net, engine output - gross, transmission type, number of travel speeds, drive - 2wd / 4wd, service brake type, length - roading, height - over cab, maximum height, width, ground clearance, width - standard shovel, stabiliser type, maximum dig depth - longest dipper, dig depth - sae, reach from slew pivot - non-extending dipper, loading height - non-extending dipper, dump height - general purpose, fuel tank, shovel capacity - standard general purpose, bucket tearout - non-extending dipper, dipper tearout - non-extending dipper, shovel breakout - general purpose, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: Yes
Clamshell: Yes
Forklift utility: No
Grabber: No
Diesel particulate filter: No
Aircondition: No

Download datasheets (PDF)

Palazzani PB 70 FAQ

When was the Palazzani PB 70 manufactured?

The Palazzani PB 70 was manufactured from 2009 to 2017.

How much does the Palazzani PB 70 weigh?

The Palazzani PB 70 weighs 6.35 tons.

What are the transport dimensions of the Palazzani PB 70 backhoe loader?

The Palazzani PB 70 has a transport length of 5.45 meters, a transport width of 2 meters, and a transport height of 3.14 meters.

What is the size of the standard tyres on the Palazzani PB 70 backhoe loader?

The Palazzani PB 70 backhoe loader has standard tyres sized 14.5x20.

What is the excavation performance of the Palazzani PB 70 backhoe loader?

The Palazzani PB 70 has a dredging depth of 4.2 meters and a maximum horizontal reach of 4.7 meters.

What are the power ratings of the Palazzani PB 70 backhoe loader?

The source data does not provide power rating information for the Palazzani PB 70 backhoe loader.

What is the maximum discharge height of the Palazzani PB 70 backhoe loader?

The Palazzani PB 70 backhoe loader has a maximum discharge height of 4.5 meters.

What are the specifications of the primary work tool bucket on the Palazzani PB 70 backhoe loader?

The primary work tool bucket on the Palazzani PB 70 has a capacity of 1 cubic meter and a width of 2 meters.
