TLB840R Mecalac TLB840R Specifications & Technical Data (2018—2021)

The Mecalac TLB840R is a backhoe loader manufactured by Mecalac from 2018 to 2021. It has a weight of 7.32 tons and a transport le…

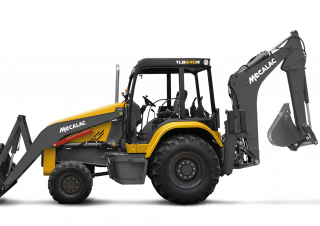

The Mecalac TLB840R is a backhoe loader manufactured by Mecalac from 2018 to 2021. It has a weight of 7.32 tons and a transport length of 6.22 meters. The bucket capacity is 1 cubic meter, with a tear-out force of 46 kilonewtons. The dredging depth is 4.411 meters, and the bucket width is 2.3 meters. The maximum discharge height is 3.145 meters, and the maximum reach horizontal is 5.695 meters. It has a travel speed of 38 kilometers per hour. The transport width is 2.31 meters, and the transport height is 3.488 meters. The backhoe bucket capacity is 0.58 cubic meters, with a tear-out force of 35.4 kilonewtons.

TLB840R

Years of manufacture: 2018—2021

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - TLB840R Mecalac

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 7.32 t

Standard tyres: 12.5/80x18/16.9x28

Bucket width: 2.3 m

Bucket capacity: 1 m³

Bucket capacity backhoe: 0.58 m³

Drive: A

Transport length: 6.22 m

Transport width: 2.31 m

Transport height: 3.488 m

Tear-out force: 46 kN

Tear-out force backhoe: 35.4 kN

Max. Reach horizontal: 5.695 m

Dredging depth: 4.411 m

Max. discharge height: 3.145 m

Travel speed: 38 km/h

Model series: TLB

Engine manuf.: Deutz

Engine type: TCD3.6 L4

Engine power: 55.4 kW

Displacement: 3.6 l

Max. torque: 390/1300 Nm

Cylinder bore x stroke: 98x120 mm

Emission level: Tier 4

More technical details, like: dimension lxwxh, revolutions at max torque, no. of cylinders are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: No
Clamshell: No
Forklift utility: No
Grabber: No
Diesel particulate filter: No
Aircondition: No

Download datasheets (PDF)

TLB840R Mecalac Specification for Europe (EN)

Mecalac TLB840R FAQ

When was the Mecalac TLB840R manufactured?

The Mecalac TLB840R was manufactured from 2018 to 2021.

How much does the Mecalac TLB840R weigh?

The Mecalac TLB840R weighs 7.32 tons.

What are the transport dimensions of the Mecalac TLB840R backhoe loader?

The Mecalac TLB840R has a transport length of 6.22 meters, a transport width of 2.31 meters, and a transport height of 3.49 meters.

What is the travel speed of the Mecalac TLB840R backhoe loader?

The Mecalac TLB840R backhoe loader has a travel speed of 38 km/h.

What are the undercarriage specifications of the Mecalac TLB840R backhoe loader?

The Mecalac TLB840R has an all-wheel drive system and is equipped with standard tyres sized 12.5/80x18 and 16.9x28.

What are the dredging depth and maximum horizontal reach of the Mecalac TLB840R backhoe loader?

The Mecalac TLB840R has a dredging depth of 4.411 meters and a maximum horizontal reach of 5.695 meters.

What are the tear-out forces of the Mecalac TLB840R backhoe loader?

The Mecalac TLB840R has a tear-out force of 46 kN and a backhoe tear-out force of 35.4 kN.

What is the maximum discharge height for material handling of the Mecalac TLB840R backhoe loader?

The Mecalac TLB840R backhoe loader has a maximum discharge height of 3.15 meters for material handling.

What are the specifications of the primary work tool on the Mecalac TLB840R backhoe loader?

The Mecalac TLB840R features a loader bucket with a capacity of 1 cubic meter and a width of 2.3 meters, and a backhoe bucket with a capacity of 0.58 cubic meters.
