TLB830 Mecalac TLB830 Specifications & Technical Data (2017—2020)

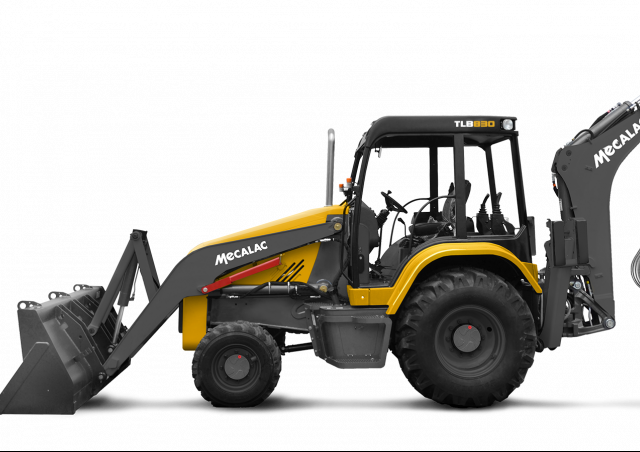

The Mecalac TLB830 is a backhoe loader manufactured by Mecalac from 2017 to 2020. It has a weight of 7.21 tons and a bucket capaci…

The Mecalac TLB830 is a backhoe loader manufactured by Mecalac from 2017 to 2020. It has a weight of 7.21 tons and a bucket capacity of 1 cubic meter. The tear-out force is 46 kilonewtons, and it can dredge up to a depth of 5.44 meters. The maximum discharge height is 3.14 meters, and it has a maximum reach horizontal of 6.67 meters. The travel speed of this backhoe loader is 38 kilometers per hour. It has a transport width of 2.31 meters and a transport height of 3.49 meters. The backhoe bucket capacity is 0.58 cubic meters, with a tear-out force of 35.4 kilonewtons.

TLB830

Years of manufacture: 2017—2020

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - TLB830 Mecalac

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 7.21 t

Bucket capacity: 1 m³

Bucket capacity backhoe: 0.58 m³

Transport width: 2.31 m

Transport height: 3.49 m

Tear-out force: 46 kN

Tear-out force backhoe: 35.4 kN

Max. Reach horizontal: 6.67 m

Dredging depth: 5.44 m

Max. discharge height: 3.14 m

Travel speed: 38 km/h

Model series: TLB

Engine manuf.: Perkins

Engine type: 1104D–44TA

Engine power: 70 kW

Displacement: 4.4 l

Revolutions at max torque: 2200 rpm

Max. torque: 392 Nm

No. of cylinders: 4

Emission level: Tier 3/ III

More technical details, like: standard tyres, bucket width, drive, transport length, dimension lxwxh, cylinder bore x stroke, backhoe type, engine manufacturer, engine model, aspiration, diesel oxidation catalyst, diesel particulate filter, selective catalytic reduction, rated speed, engine output - net, engine output - gross, torque rated speed, torque, transmission type, number of travel speeds, drive - 2wd / 4wd, service brake type, height - over cab, width, stabiliser type, maximum dig depth - longest dipper, dig depth - sae, dig depth - sae retracted dipper, dig depth - sae extended dipper, reach from slew pivot - non-extending dipper, reach from slew pivot - retracted dipper, reach from slew pivot - extended dipper, loading height - non-extending dipper, loading height - retracted dipper, loading height - extended dipper, dump height - general purpose, dump angle - general purpose, fuel tank, shovel capacity - standard general purpose, bucket tearout - non-extending dipper, dipper tearout - non-extending dipper, shovel breakout - general purpose, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: No
Clamshell: No
Forklift utility: No
Grabber: No
Diesel particulate filter: No
Aircondition: No

Download datasheets (PDF)

TLB830 Mecalac Specification for Europe (ES)

Mecalac TLB830 FAQ

When was the Mecalac TLB830 manufactured?

The Mecalac TLB830 was manufactured from 2017 to 2020.

How much does the Mecalac TLB830 backhoe loader weigh?

The Mecalac TLB830 backhoe loader weighs 7.21 tons.

What are the transport dimensions of the Mecalac TLB830 backhoe loader?

The Mecalac TLB830 has a transport width of 2.31 meters and a transport height of 3.49 meters.

What is the travel speed of the Mecalac TLB830 backhoe loader?

The Mecalac TLB830 backhoe loader has a travel speed of 38 km/h.

What is the excavation performance of the Mecalac TLB830 backhoe loader?

The Mecalac TLB830 has a dredging depth of 5.44 meters and a maximum horizontal reach of 6.67 meters.

What are the tear-out forces of the Mecalac TLB830 backhoe loader?

The Mecalac TLB830 has a tear-out force of 46 kN and a backhoe tear-out force of 35.4 kN.

What is the maximum discharge height of the Mecalac TLB830?

The Mecalac TLB830 has a maximum discharge height of 3.14 meters.

What are the bucket capacities of the Mecalac TLB830 backhoe loader?

The Mecalac TLB830 has a front bucket capacity of 1 cubic meter and a backhoe bucket capacity of 0.58 cubic meters.
