BH388 Mammut BH388 Specifications & Technical Data (2024—2026)

Weight: 8.2t – Standard tyres: 14-17.5/19.5L-24 – Bucket width: 2.41m – Bucket capacity: 1m³ – Bucket capacity backhoe: 0.3m³ – Transport length: 6.12m

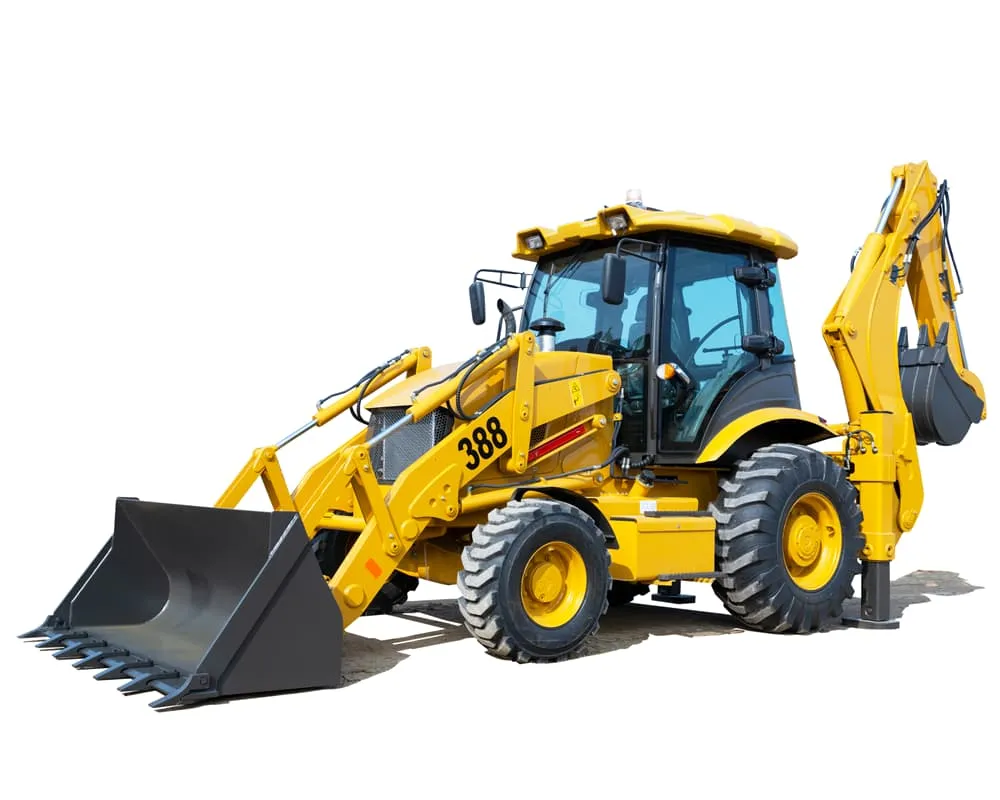

Backhoe Loaders Mammut BH388

Technical specs - BH388 Mammut

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.2 t
Standard tyres
14-17.5/19.5L-24
Bucket width
2.41 m
Bucket capacity
1 m³
Bucket capacity backhoe
0.3 m³
Transport length
6.12 m
Transport width
2.41 m
Transport height
3.76 m
Max. Reach horizontal
6.12 m
Max. discharge height
2.742 m
Travel speed
30 km/h
Engine manuf.
Yuchai
Engine type
YC4A105Z-T20
Engine power
75 kW
Revolutions at max torque
1800 rpm
Max. torque
400 Nm

More technical details, like: drive, tear-out force, tear-out force backhoe, dredging depth, model series, dimension lxwxh, displacement, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
No
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
No

Mammut BH388 FAQ

When was the Mammut BH388 manufactured?

The Mammut BH388 was first produced in 2024.

How much does the Mammut BH388 weigh?

The Mammut BH388 weighs 8.2 tons.

What are the transport dimensions of the Mammut BH388 backhoe loader?

The Mammut BH388 has a transport length of 6.12 meters, a transport width of 2.41 meters, and a transport height of 3.76 meters.

What is the travel speed of the Mammut BH388 backhoe loader?

The Mammut BH388 backhoe loader has a travel speed of 30 km/h.

What are the standard tyre specifications for the Mammut BH388 backhoe loader?

The Mammut BH388 backhoe loader has standard tyres sized 14-17.5/19.5L-24.

What is the maximum horizontal reach of the Mammut BH388 backhoe loader?

The Mammut BH388 backhoe loader has a maximum horizontal reach of 6.12 meters.

What is the material handling capacity of the Mammut BH388 in terms of maximum discharge height?

The Mammut BH388 has a maximum discharge height of 2.742 meters.

What are the specifications of the primary work tools on the Mammut BH388 backhoe loader?

The Mammut BH388 has a front loader bucket with a capacity of 1 cubic meter and a width of 2.41 meters, and a backhoe bucket with a capacity of 0.3 cubic meters.

How much is a Mammut BH388 Backhoe loader (2024u20132025) worth?

The residual value of the Mammut BH388 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
