EarthMaster VX Mahindra EarthMaster VX Specifications & Technical Data (2017—2026)

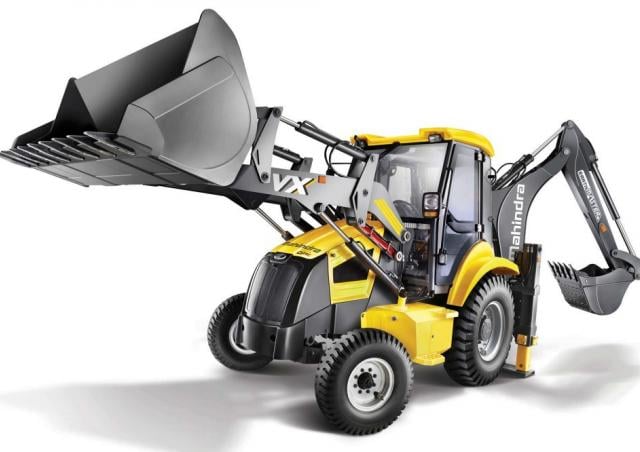

The Mahindra EarthMaster VX is a backhoe loader manufactured by Mahindra since 2017. It has a weight of 7.58 tons and a bucket cap…

The Mahindra EarthMaster VX is a backhoe loader manufactured by Mahindra since 2017. It has a weight of 7.58 tons and a bucket capacity of 1.1 cubic meters. The tear-out force of this machine is 61.22 kilonewtons, and it can dredge up to a depth of 4.89 meters. The maximum discharge height is 2.72 meters. The backhoe bucket capacity is 0.27 cubic meters, with a tear-out force of 50.98 kilonewtons.

Backhoe Loaders Mahindra EarthMaster VX

Technical specs - EarthMaster VX Mahindra

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7.61 t
Standard tyres
F: 9 X 16-16PR / R: 16.9 X 28-12PR
Bucket capacity
1.1 m³
Bucket capacity backhoe
0.27 m³
Transport width
2.5 m
Transport height
3.62 m
Tear-out force
61.22 kN
Tear-out force backhoe
50.98 kN
Max. Reach horizontal
5.7 m
Dredging depth
4.95 m
Max. discharge height
2.712 m
Model series
EarthMaster
Engine manuf.
Mahindra
Engine type
NEF3508
Engine power
55 kW
Displacement
3.5 l
Revolutions at max torque
1200 rpm
Max. torque
400 Nm
No. of cylinders
4
Emission level
CEV V

More technical details, like: bucket width, drive, transport length, travel speed, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
No
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
No

Mahindra EarthMaster VX FAQ

When was the Mahindra EarthMaster VX manufactured?

The Mahindra EarthMaster VX was first produced in 2017.

How much does the Mahindra EarthMaster VX backhoe loader weigh?

The Mahindra EarthMaster VX backhoe loader weighs 7.58 tons.

What is the excavation dredging depth of the Mahindra EarthMaster VX?

The Mahindra EarthMaster VX has a dredging depth of 4.89 meters.

What are the tear-out forces of the Mahindra EarthMaster VX backhoe loader?

The Mahindra EarthMaster VX has a tear-out force of 61.22 kN and a backhoe tear-out force of 50.98 kN.

What is the material handling capacity of the Mahindra EarthMaster VX in terms of discharge height?

The Mahindra EarthMaster VX has a maximum discharge height of 2.72 meters.

What are the bucket capacities of the Mahindra EarthMaster VX backhoe loader?

The Mahindra EarthMaster VX has a front bucket capacity of 1.1 cubic meters and a backhoe bucket capacity of 0.27 cubic meters.

How much is a Mahindra EarthMaster VX Backhoe loader (2017u20132025) worth?

The residual value of the Mahindra EarthMaster VX depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
