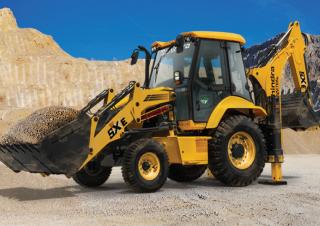

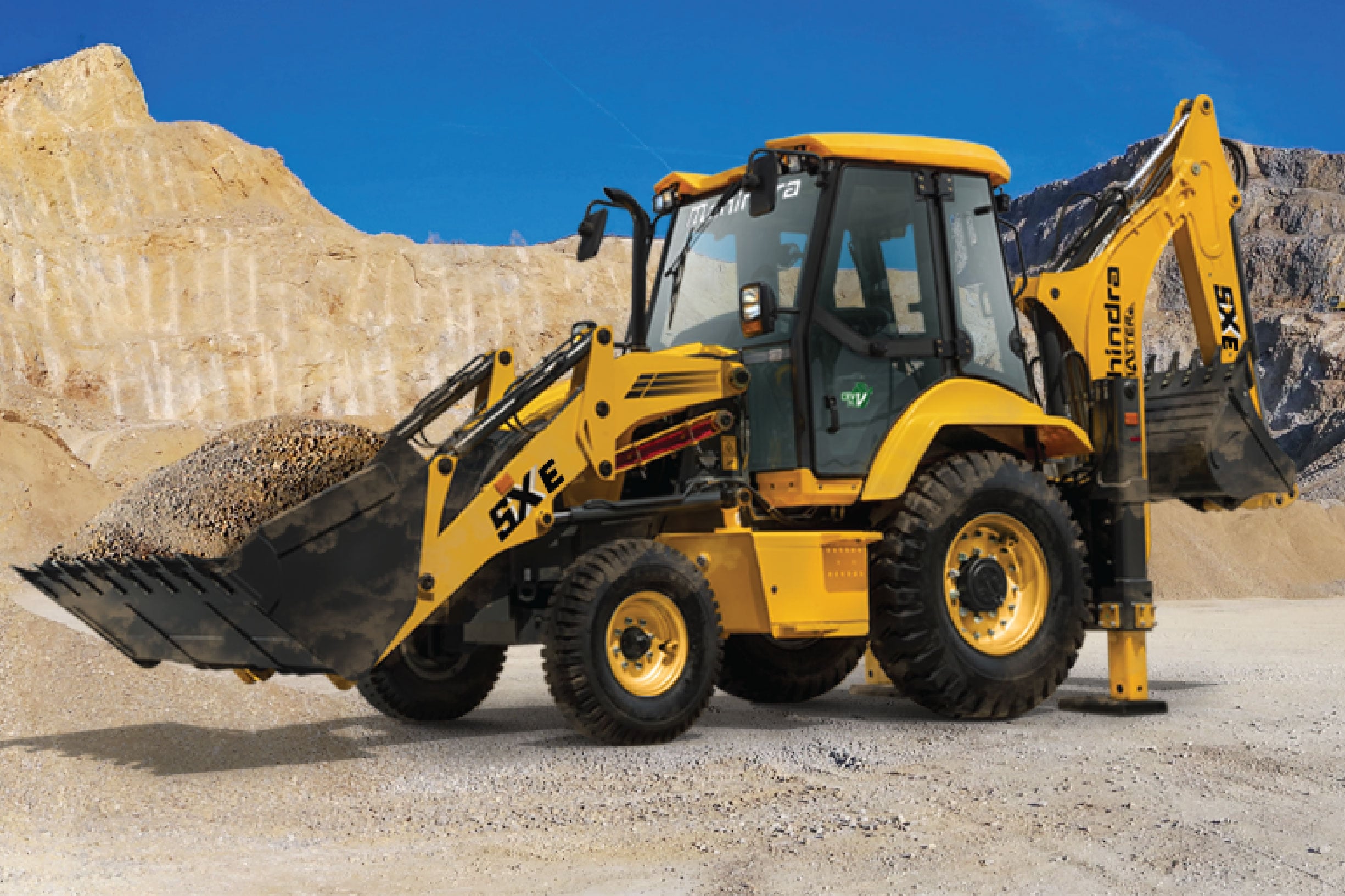

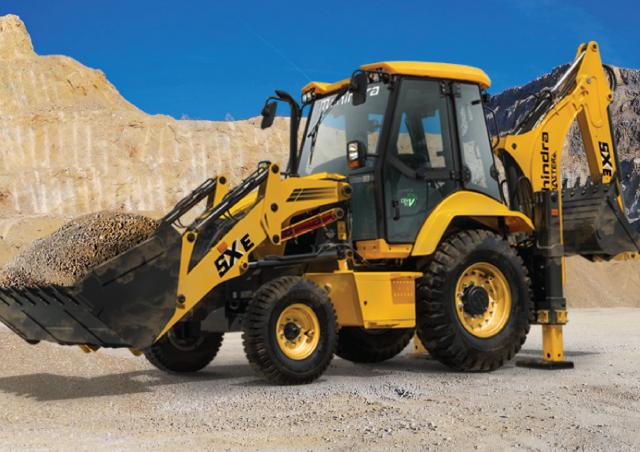

Mahindra EarthMaster SXE
- Weight:
- 7.509 t
- Standard tyres:
- F: 9 X 16-16PR / R: 16.9 X 28-12PR
- Bucket capacity:
- 1.1 m³
- Bucket capacity backhoe:
- 0.27 m³
EarthMaster SXE Mahindra EarthMaster SXE Specifications & Technical Data (2026—2026)
Technical specs - EarthMaster SXE Mahindra
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 7.509 t
- Standard tyres
- F: 9 X 16-16PR / R: 16.9 X 28-12PR
- Bucket capacity
- 1.1 m³
- Bucket capacity backhoe
- 0.27 m³
- Transport width
- 2.47 m
- Transport height
- 3.59 m
- Max. Reach horizontal
- 5.513 m
- Dredging depth
- 4.749 m
- Max. discharge height
- 2.712 m
- Model series
- EarthMaster
- Engine manuf.
- Mahindra
- Engine type
- NEF3508
- Engine power
- 41 kW
- Displacement
- 3.5 l
- Revolutions at max torque
- 1500 rpm
- Max. torque
- 217 Nm
- No. of cylinders
- 4
- Emission level
- CEV V
More technical details, like: bucket width, drive, transport length, tear-out force, tear-out force backhoe, travel speed, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.
Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket
Special equipment
- Outrigger stabilisers
-
No
- Clamshell
-
No
- Forklift utility
-
No
- Grabber
-
No
- Diesel particulate filter
-
No
- Aircondition
-
No
