766A Liugong 766A Specifications & Technical Data (2017—2026)

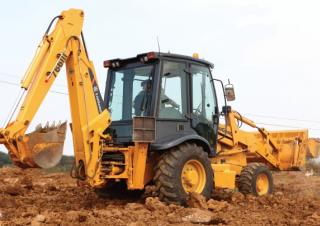

The Liugong 766A Backhoe Loader, manufactured since 2017, is a construction machine with a weight of 8.1 tons. It has a transport …

The Liugong 766A Backhoe Loader, manufactured since 2017, is a construction machine with a weight of 8.1 tons. It has a transport length of 6.97 meters and a bucket capacity of 1 cubic meter. The tear-out force is 59.6 kN, and it can dredge up to a depth of 4.44 meters. The bucket width is 2.26 meters, and the maximum discharge height is 0.713 meters. With a maximum reach of 5.443 meters horizontally, it can travel at a speed of 36 km/h. The transport width is 2.28 meters, and the transport height is 2.876 meters. Additionally, it has a backhoe bucket capacity of 0.2 cubic meters and a tear-out force of 58.2 kN.

Backhoe Loaders Liugong 766A

Visit Liugong live at

Technical specs - 766A Liugong

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.1 t
Standard tyres
F 14-17.5NHS-14RP T/R 19.5 L-24 14PR T
Bucket width
2.26 m
Bucket capacity
1 m³
Bucket capacity backhoe
0.2 m³
Transport length
6.97 m
Transport width
2.28 m
Transport height
2.876 m
Tear-out force
59.6 kN
Tear-out force backhoe
58.2 kN
Max. Reach horizontal
5.443 m
Dredging depth
4.44 m
Max. discharge height
0.713 m
Travel speed
36 km/h
Model series
A
Engine manuf.
Perkins
Engine type
1104D - 44T
Engine power
72 kW
Displacement
4.4 l
Revolutions at max torque
2200 rpm
Max. torque
392/1400 Nm
Emission level
Tier 3/EU IIIA

More technical details, like: drive, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
No
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download datasheets (PDF)

Liugong 766A FAQ

When was the Liugong 766A manufactured?

The Liugong 766A was first produced in 2017.

How much does the Liugong 766A backhoe loader weigh?

The Liugong 766A backhoe loader weighs 8.1 tons.

What are the transport dimensions of the Liugong 766A backhoe loader?

The Liugong 766A has a transport length of 6.97 meters, a transport width of 2.28 meters, and a transport height of 2.88 meters.

What is the travel speed of the Liugong 766A backhoe loader?

The Liugong 766A backhoe loader has a travel speed of 36 km/h.

What are the undercarriage tyre specifications of the Liugong 766A backhoe loader?

The Liugong 766A is equipped with front tyres sized 14-17.5NHS-14RP T and rear tyres sized 19.5 L-24 14PR T as standard.

What is the excavation performance of the Liugong 766A backhoe loader?

The Liugong 766A backhoe loader has a dredging depth of 4.44 meters and a maximum horizontal reach of 5.443 meters.

What are the tear-out forces of the Liugong 766A backhoe loader?

The Liugong 766A has a tear-out force of 59.6 kN and a backhoe tear-out force of 58.2 kN.

What is the maximum discharge height of the Liugong 766A backhoe loader?

The Liugong 766A backhoe loader has a maximum discharge height of 0.71 meters.

What are the specifications of the primary work tools on the Liugong 766A backhoe loader?

The Liugong 766A features a front loader bucket with a capacity of 1 cubic meter and a width of 2.26 meters, and a backhoe bucket with a capacity of 0.2 cubic meters.
