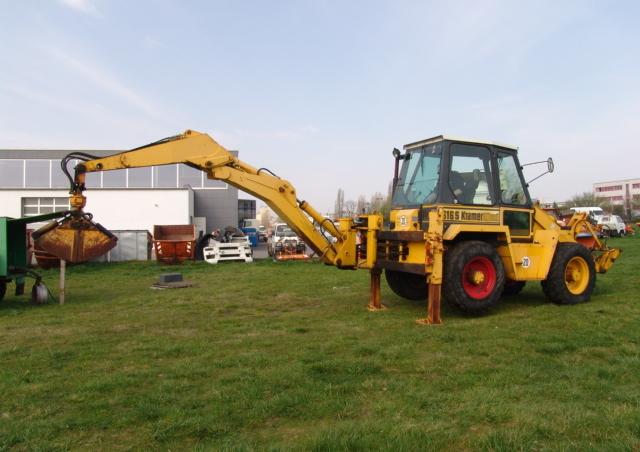

Kramer 616 S/TB 80 Backhoe Loader Specs & Dimensions (1993 - 1999)

Technical specs - 616 S/TB 80 Kramer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 8.25 t

Standard tyres: 16/70-24

Bucket capacity: 1.2 m³

Drive: A

Transport length: 5.97 m

Transport width: 2.15 m

Transport height: 3.5 m

Engine manuf.: Perkins

Engine type: 1004.4T

Engine power: 75 kW

More technical details, like: bucket width, bucket capacity backhoe, tear-out force, tear-out force backhoe, max. reach horizontal, dredging depth, max. discharge height, travel speed, model series, dimension lxwxh, displacement, revolutions at max torque...

More technical details, like: bucket width, bucket capacity backhoe, tear-out force, tear-out force backhoe, max. reach horizontal, dredging depth, max. discharge height, travel speed, model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, backhoe type, engine manufacturer, engine model, aspiration, rated speed, engine output - net, transmission type, number of travel speeds, service brake type, height - over cab, ground clearance, width - standard shovel, dig depth - sae, reach from slew pivot - non-extending dipper, loading height - non-extending dipper, dump height - general purpose, dump angle - general purpose, shovel capacity - standard general purpose, bucket tearout - non-extending dipper, dipper tearout - non-extending dipper, shovel breakout - general purpose are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: No
Clamshell: No
Forklift utility: No
Grabber: No
Diesel particulate filter: No
Aircondition: No

Kramer 616 S/TB 80 FAQ

When was the Kramer 616 S/TB 80 backhoe loader manufactured?

The Kramer 616 S/TB 80 was manufactured from 1993 to 1999.

How much does the Kramer 616 S/TB 80 weigh?

The Kramer 616 S/TB 80 weighs 8.25 tons.

What are the transport dimensions of the Kramer 616 S/TB 80 backhoe loader?

The Kramer 616 S/TB 80 has a transport length of 5.97 meters, a transport width of 2.15 meters, and a transport height of 3.5 meters.

What are the undercarriage specifications of the Kramer 616 S/TB 80 backhoe loader?

The Kramer 616 S/TB 80 has an all-wheel drive and is equipped with standard tyres sized 16/70-24.

What is the bucket capacity of the Kramer 616 S/TB 80 backhoe loader?

The Kramer 616 S/TB 80 backhoe loader has a bucket capacity of 1.2 cubic meters.

How much is a Kramer 616 S/TB 80 Backhoe loader (1993u20131999) worth?

The residual value of the Kramer 616 S/TB 80 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
