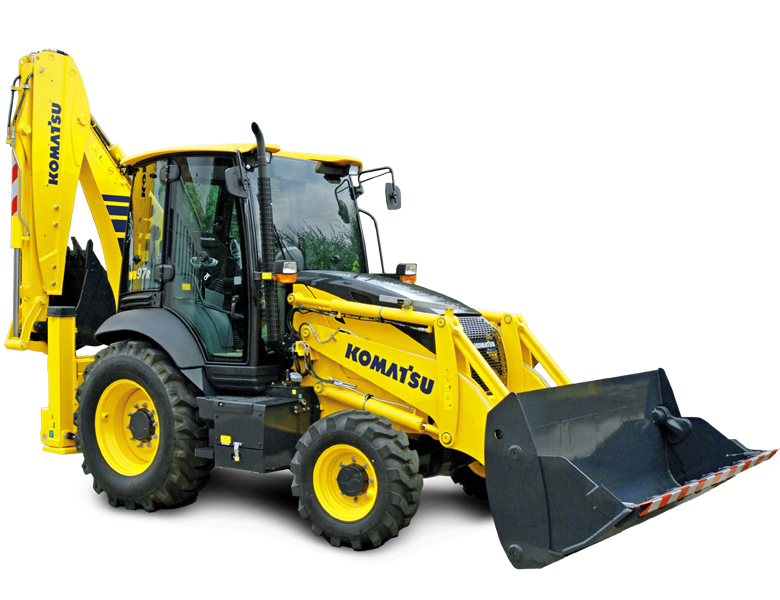

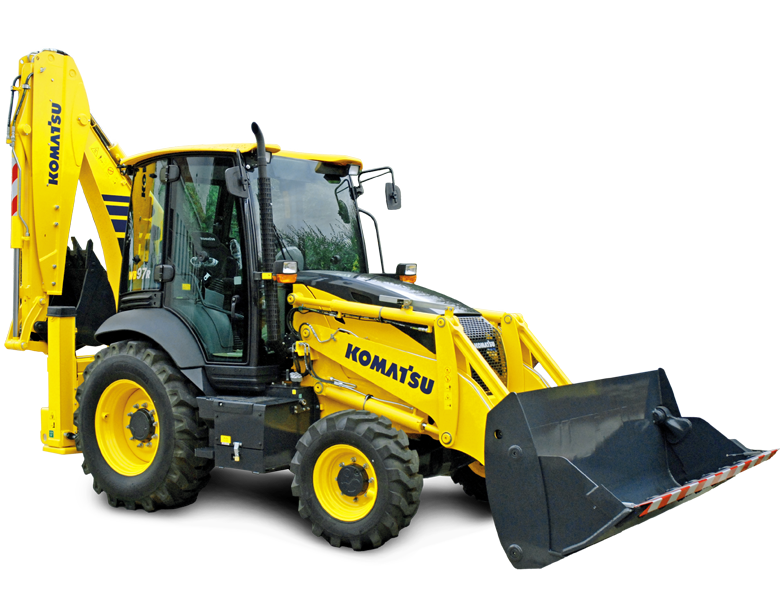

WB97R-8E0 Komatsu WB97R-8E0 Specifications & Technical Data (2020—2026)
.png)
.png)
Visit Komatsu live at
.jpg){kind=logo}
Technical specs - WB97R-8E0 Komatsu
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 8.14 t
- Standard tyres
- F: 12.5/80-18-14 PR. R: 16.9-28-12 PR
- Bucket width
- 2.34 m
- Bucket capacity
- 1.03 m³
- Transport length
- 5.99 m
- Transport width
- 2.34 m
- Transport height
- 3.785 m
- Max. Reach horizontal
- 6.035 m
- Dredging depth
- 5.245 m
- Max. discharge height
- 2.58 m
- Travel speed
- 40 km/h
- Model series
- WB
- Engine manuf.
- Komatsu
- Engine type
- SAA4D99E-1
- Engine power
- 75 kW
- Displacement
- 3.4 l
- Revolutions at max torque
- 2300 rpm
- Max. torque
- 430/1400 Nm
- No. of cylinders
- 4
- Cylinder bore x stroke
- 99x110 mm
- Emission level
- EU IV
More technical details, like: bucket capacity backhoe, drive, tear-out force, tear-out force backhoe, dimension lxwxh are available in the full technical specs.
Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket
Special equipment
- Outrigger stabilisers
-
Yes
- Clamshell
-
No
- Forklift utility
-
No
- Grabber
-
No
- Diesel particulate filter
-
No
- Aircondition
-
No
Download datasheets (PDF)
