WB93R-8E0 Komatsu WB93R-8E0 Specifications & Technical Data (2018—2026)

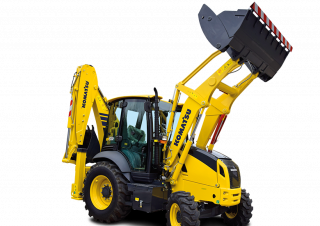

The Komatsu WB93R-8E0 is a backhoe loader manufactured since 2018. It has a weight of 8.13 tons and a transport length of 5.99 met…

The Komatsu WB93R-8E0 is a backhoe loader manufactured since 2018. It has a weight of 8.13 tons and a transport length of 5.99 meters. The bucket capacity is 1.03 cubic meters, and it can dredge up to a depth of 4.98 meters. The bucket width is 2.32 meters, and it can reach a maximum discharge height of 2.58 meters. The backhoe has a maximum reach of 5.75 meters horizontally. It has a travel speed of 40 km/h and a transport width of 2.34 meters. The transport height is 2.9 meters. The tear-out force of the backhoe is 39.25 kN.

Backhoe Loaders Komatsu WB93R-8E0

Visit Komatsu live at

Technical specs - WB93R-8E0 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.13 t
Standard tyres
16.9-28-12 PR
Bucket width
2.32 m
Bucket capacity
1.03 m³
Drive
H
Transport length
5.99 m
Transport width
2.34 m
Transport height
2.9 m
Tear-out force backhoe
39.25 kN
Max. Reach horizontal
5.75 m
Dredging depth
4.98 m
Max. discharge height
2.58 m
Travel speed
40 km/h
Model series
WB
Engine manuf.
Komatsu
Engine type
SAA4D99E-1
Engine power
75 kW
Displacement
3.4 l
Revolutions at max torque
2300 rpm
Max. torque
430/1400 Nm
No. of cylinders
4
Cylinder bore x stroke
99x110 mm
Emission level
EU IV

More technical details, like: bucket capacity backhoe, tear-out force, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
No
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download datasheets (PDF)

Komatsu WB93R-8E0 FAQ

When was the Komatsu WB93R-8E0 manufactured?

The Komatsu WB93R-8E0 was first produced in 2018.

How much does the Komatsu WB93R-8E0 weigh?

The Komatsu WB93R-8E0 weighs 8.13 tons.

What are the transport dimensions of the Komatsu WB93R-8E0 backhoe loader?

The Komatsu WB93R-8E0 has a transport length of 5.99 meters, a transport width of 2.34 meters, and a transport height of 2.9 meters.

What is the travel speed of the Komatsu WB93R-8E0 backhoe loader?

The Komatsu WB93R-8E0 backhoe loader has a travel speed of 40 km/h.

What are the undercarriage specifications of the Komatsu WB93R-8E0 backhoe loader?

The Komatsu WB93R-8E0 has a rear wheel drive and is equipped with standard tyres sized 16.9-28-12 PR.

What are the excavation performance specifications of the Komatsu WB93R-8E0 backhoe loader?

The Komatsu WB93R-8E0 has a dredging depth of 4.98 meters and a maximum horizontal reach of 5.75 meters.

What is the tear-out force of the Komatsu WB93R-8E0 backhoe loader?

The Komatsu WB93R-8E0 backhoe loader has a tear-out force of 39.25 kN.

What is the maximum discharge height of the Komatsu WB93R-8E0 backhoe loader?

The Komatsu WB93R-8E0 backhoe loader has a maximum discharge height of 2.58 meters.

What are the bucket specifications of the Komatsu WB93R-8E0 backhoe loader?

The Komatsu WB93R-8E0 has a bucket capacity of 1.03 cubic meters and a bucket width of 2.32 meters.

How much is a Komatsu WB93R-8E0 Backhoe loader (2018u20132025) worth?

The residual value of the Komatsu WB93R-8E0 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
