WB 146PS-5 Komatsu WB 146PS-5 Specifications & Technical Data (2006—2013)

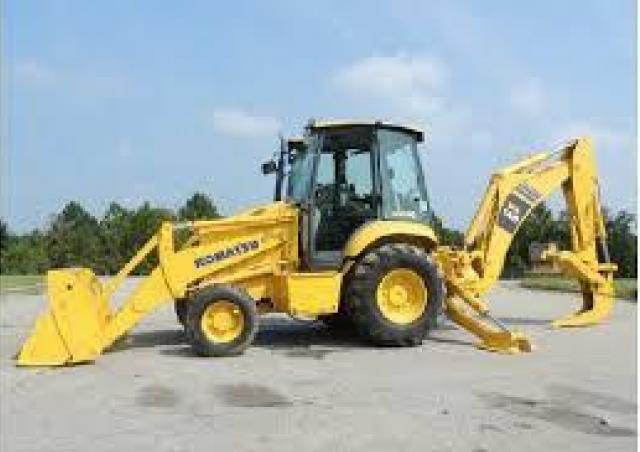

The Komatsu WB 146PS-5 is a backhoe loader manufactured from 2006 to 2013. It has a weight of 7.3 tons and a transport length of 7…

The Komatsu WB 146PS-5 is a backhoe loader manufactured from 2006 to 2013. It has a weight of 7.3 tons and a transport length of 7.432 meters. The bucket capacity is 0.95 cubic meters, with a dredging depth of 5.533 meters and a bucket width of 2.356 meters. The maximum reach horizontally is 5.885 meters, and it has a travel speed of 40 km/h. The transport width is 2.356 meters, and the transport height is 4.23 meters.

Backhoe Loaders Komatsu WB 146PS-5

Visit Komatsu live at

Technical specs - WB 146PS-5 Komatsu

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7.3 t
Bucket width
2.356 m
Bucket capacity
0.95 m³
Drive
A
Transport length
7.432 m
Transport width
2.356 m
Transport height
4.23 m
Max. Reach horizontal
5.885 m
Dredging depth
5.533 m
Travel speed
40 km/h
Model series
WB
Engine manuf.
Komatsu
Engine type
S4D102LE-2
Engine power
69 kW
Displacement
4.5 l
Revolutions at max torque
2200 rpm
Max. torque
407 Nm
No. of cylinders
4

More technical details, like: standard tyres, bucket capacity backhoe, tear-out force, tear-out force backhoe, max. discharge height, dimension lxwxh, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
No
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download datasheets (PDF)

Komatsu WB 146PS-5 FAQ

When was the Komatsu WB 146PS-5 manufactured?

The Komatsu WB 146PS-5 was manufactured from 2006 to 2013.

How much does the Komatsu WB 146PS-5 weigh?

The Komatsu WB 146PS-5 weighs 7.3 tons.

What are the transport dimensions of the Komatsu WB 146PS-5 backhoe loader?

The Komatsu WB 146PS-5 has a transport length of 7.43 meters, a transport width of 2.36 meters, and a transport height of 4.23 meters.

What is the travel speed of the Komatsu WB 146PS-5 backhoe loader?

The Komatsu WB 146PS-5 backhoe loader has a travel speed of 40 km/h.

What type of drive system does the Komatsu WB 146PS-5 have in its undercarriage?

The Komatsu WB 146PS-5 has an all-wheel drive system in its undercarriage.

What are the dredging depth and maximum horizontal reach of the Komatsu WB 146PS-5?

The Komatsu WB 146PS-5 has a dredging depth of 5.533 meters and a maximum horizontal reach of 5.885 meters.

What are the bucket specifications of the Komatsu WB 146PS-5 backhoe loader?

The Komatsu WB 146PS-5 backhoe loader has a bucket capacity of 0.95 cubic meters and a bucket width of 2.36 meters.

How much is a Komatsu WB 146PS-5 Backhoe loader (2006u20132013) worth?

The residual value of the Komatsu WB 146PS-5 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
