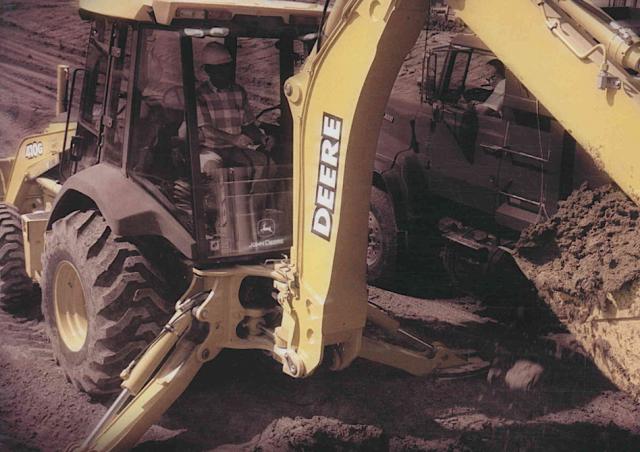

710 G John Deere Construction 710 G Specifications & Technical Data (2006—2021)

The John Deere Construction 710 G is a backhoe loader manufactured by John Deere Construction from 2006 to 2021. It has a weight o…

The John Deere Construction 710 G is a backhoe loader manufactured by John Deere Construction from 2006 to 2021. It has a weight of 10.43 tons and a transport length of 8.15 meters. The bucket capacity is 1.34 cubic meters, with a tear-out force of 66 kilonewtons. It can dredge up to a depth of 6.86 meters and has a bucket width of 2.511 meters. The maximum discharge height is 4.88 meters, and it has a maximum reach horizontal of 8.13 meters. The travel speed of this backhoe loader is 37.1 kilometers per hour. It has a transport width of 2.38 meters and a transport height of 4.22 meters. Additionally, it is equipped with special equipment including a diesel particulate filter, forklift utility, and outrigger stabilizers. The backhoe bucket capacity is 0.31 cubic meters, and it has a tear-out force of 75.6 kilonewtons.

710 G

Years of manufacture: 2006—2021

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 710 G John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 10.43 t

Standard tyres: F: 14.5/75-16.1 R: 21L-28

Bucket width: 2.511 m

Bucket capacity: 1.34 m³

Bucket capacity backhoe: 0.31 m³

Transport length: 8.15 m

Transport width: 2.38 m

Transport height: 4.22 m

Tear-out force: 66 kN

Tear-out force backhoe: 75.6 kN

Max. Reach horizontal: 8.13 m

Dredging depth: 6.86 m

Max. discharge height: 4.88 m

Travel speed: 37.1 km/h

Model series: G

Engine manuf.: John Deere

Engine type: 6068T

Engine power: 91 kW

Max. torque: 538 Nm

No. of cylinders: 6

Emission level: EPA Tier 2

More technical details, like: drive, dimension lxwxh, displacement, revolutions at max torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: Yes
Clamshell: No
Forklift utility: Yes
Grabber: No
Diesel particulate filter: Yes
Aircondition: No

Download datasheets (PDF)

710 G John Deere Construction Specification for Europe (FR)

John Deere Construction 710 G FAQ

When was the John Deere Construction 710 G manufactured?

The John Deere Construction 710 G was manufactured from 2006 to 2021.

How much does the John Deere Construction 710 G backhoe loader weigh?

The John Deere Construction 710 G backhoe loader weighs 10.43 tons.

What are the transport dimensions of the John Deere Construction 710 G backhoe loader?

The John Deere Construction 710 G has transport dimensions of 8.15 meters in length, 2.38 meters in width, and 4.22 meters in height.

What is the travel speed of the John Deere Construction 710 G backhoe loader?

The John Deere Construction 710 G backhoe loader has a travel speed of 37.1 km/h.

What are the standard tyre specifications for the undercarriage of the John Deere Construction 710 G backhoe loader?

The John Deere Construction 710 G backhoe loader has standard tyres sized Front: 14.5/75-16.1 and Rear: 21L-28.

What are the dredging depth and maximum horizontal reach of the John Deere Construction 710 G?

The John Deere Construction 710 G has a dredging depth of 6.86 meters and a maximum horizontal reach of 8.13 meters.

What are the tear-out forces of the John Deere Construction 710 G backhoe loader?

The John Deere Construction 710 G has a tear-out force of 66 kN and a backhoe tear-out force of 75.6 kN.

What is the maximum discharge height of the John Deere Construction 710 G?

The John Deere Construction 710 G has a maximum discharge height of 4.88 meters.

What are the specifications of the primary work tools on the John Deere Construction 710 G backhoe loader?

The John Deere Construction 710 G has a front loader bucket with a capacity of 1.34 cubic meters and a width of 2.51 meters, and a backhoe bucket with a capacity of 0.31 cubic meters.

How much is a John Deere Construction 710 G Backhoe loader (2006u20132021) worth?

The residual value of the John Deere Construction 710 G depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
