710 C John Deere Construction 710 C Specifications & Technical Data (1988—1993)

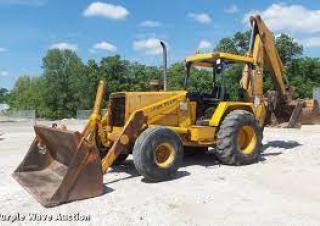

The John Deere Construction 710 C is a backhoe loader manufactured by John Deere Construction from 1988 to 1993. It has a weight o…

The John Deere Construction 710 C is a backhoe loader manufactured by John Deere Construction from 1988 to 1993. It has a weight of 10.2 tons and a bucket capacity of 1.15 cubic meters. The tear-out force is 60.3 kilonewtons, and it can dredge up to a depth of 5.49 meters. The maximum discharge height is 3.6 meters, and it has a maximum reach horizontal of 6.9 meters. This backhoe loader is equipped with special equipment including a diesel particulate filter, forklift utility, and outrigger stabilizers. The tear-out force of the backhoe is 60 kilonewtons.

Backhoe Loaders John Deere Construction 710 C

Technical specs - 710 C John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
10.2 t
Bucket capacity
1.15 m³
Tear-out force
60.3 kN
Tear-out force backhoe
60 kN
Max. Reach horizontal
6.9 m
Dredging depth
5.49 m
Max. discharge height
3.6 m
Model series
C
Engine manuf.
John Deere
Engine type
N/A
Engine power
89 kW
Displacement
5.88 l
No. of cylinders
4

More technical details, like: standard tyres, bucket width, bucket capacity backhoe, drive, transport length, transport width, transport height, travel speed, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
Yes
Clamshell
No
Forklift utility
Yes
Grabber
No
Diesel particulate filter
Yes
Aircondition
No

Download datasheets (PDF)

John Deere Construction 710 C FAQ

When was the John Deere Construction 710 C manufactured?

The John Deere Construction 710 C was manufactured from 1988 to 1993.

How much does the John Deere Construction 710 C weigh?

The John Deere Construction 710 C weighs 10.2 tons.

What are the dredging depth and maximum horizontal reach of the John Deere Construction 710 C backhoe loader?

The John Deere Construction 710 C has a dredging depth of 5.49 meters and a maximum horizontal reach of 6.9 meters.

What are the tear-out forces of the John Deere Construction 710 C backhoe loader?

The John Deere Construction 710 C has a tear-out force of 60.3 kN and a backhoe tear-out force of 60 kN.

What is the maximum discharge height of the John Deere Construction 710 C?

The John Deere Construction 710 C has a maximum discharge height of 3.6 meters.

What is the bucket capacity of the John Deere Construction 710 C backhoe loader?

The John Deere Construction 710 C backhoe loader has a bucket capacity of 1.15 cubic meters.
