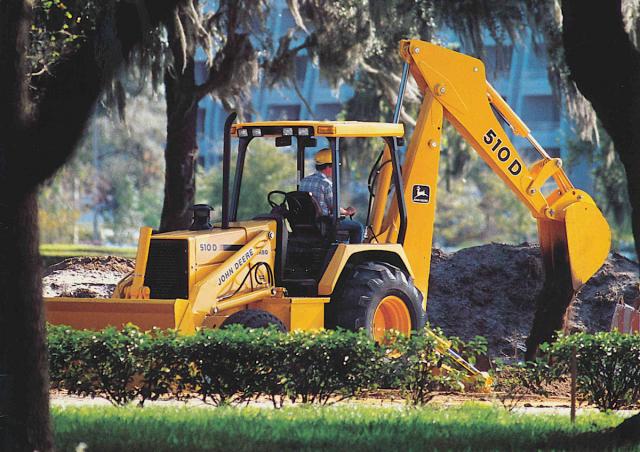

510 D John Deere Construction 510 D Specifications & Technical Data (1991—2021)

The John Deere Construction 510 D is a backhoe loader that has been manufactured from 1991 to 2021. It has a weight of 7.26 tons a…

The John Deere Construction 510 D is a backhoe loader that has been manufactured from 1991 to 2021. It has a weight of 7.26 tons and a transport length of 7.11 meters. The bucket capacity is 1 cubic meter, with a tear-out force of 46.5 kilonewtons. It can dredge up to a depth of 4.67 meters and has a bucket width of 2.34 meters. The maximum discharge height is 3.96 meters, and it has a maximum reach horizontal of 7.21 meters. The travel speed of this machine is 41.2 kilometers per hour. It has a transport width of 2.15 meters and a transport height of 3.68 meters. The backhoe bucket capacity is 0.07 cubic meters, with a tear-out force of 48.9 kilonewtons. Special equipment includes a diesel particulate filter, forklift utility, and outrigger stabilizers.

Backhoe Loaders John Deere Construction 510 D

Technical specs - 510 D John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7.26 t
Standard tyres
F:11L-16 12 PR F3 R: 19.5L-24 10 PR R4
Bucket width
2.34 m
Bucket capacity
1 m³
Bucket capacity backhoe
0.07 m³
Transport length
7.11 m
Transport width
2.15 m
Transport height
3.68 m
Tear-out force
46.5 kN
Tear-out force backhoe
48.9 kN
Max. Reach horizontal
7.21 m
Dredging depth
4.67 m
Max. discharge height
3.96 m
Travel speed
41.2 km/h
Model series
D
Engine manuf.
John Deere
Engine type
4045T
Engine power
67 kW
Displacement
4.524 l
Max. torque
363 Nm
No. of cylinders
4

More technical details, like: drive, dimension lxwxh, revolutions at max torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
Yes
Clamshell
No
Forklift utility
Yes
Grabber
No
Diesel particulate filter
Yes
Aircondition
No

Download datasheets (PDF)

John Deere Construction 510 D FAQ

When was the John Deere Construction 510 D manufactured?

The John Deere Construction 510 D was manufactured from 1991 to 2021.

How much does the John Deere Construction 510 D weigh?

The John Deere Construction 510 D weighs 7.26 tons.

What are the transport dimensions of the John Deere Construction 510 D backhoe loader?

The John Deere Construction 510 D has a transport length of 7.11 meters, a transport width of 2.15 meters, and a transport height of 3.68 meters.

What is the travel speed of the John Deere Construction 510 D backhoe loader?

The John Deere Construction 510 D backhoe loader has a travel speed of 41.2 km/h.

What are the standard tyre specifications for the undercarriage of the John Deere Construction 510 D backhoe loader?

The John Deere Construction 510 D is equipped with standard tyres: Front tyres are 11L-16 12 PR F3 and Rear tyres are 19.5L-24 10 PR R4.

What are the excavation performance specifications of the John Deere Construction 510 D backhoe loader?

The John Deere Construction 510 D has a dredging depth of 4.67 meters and a maximum horizontal reach of 7.21 meters.

What are the tear-out forces of the John Deere Construction 510 D backhoe loader?

The John Deere Construction 510 D has a tear-out force of 46.5 kN and a backhoe tear-out force of 48.9 kN.

What is the maximum discharge height of the John Deere Construction 510 D backhoe loader?

The John Deere Construction 510 D has a maximum discharge height of 3.96 meters.

What are the specifications of the primary work tool on the John Deere Construction 510 D backhoe loader?

The John Deere Construction 510 D has a front bucket with a capacity of 1 cubic meter and a width of 2.34 meters, and its backhoe bucket has a capacity of 0.07 cubic meters.

How much is a John Deere Construction 510 D Backhoe loader (1991u20132021) worth?

The residual value of the John Deere Construction 510 D depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
