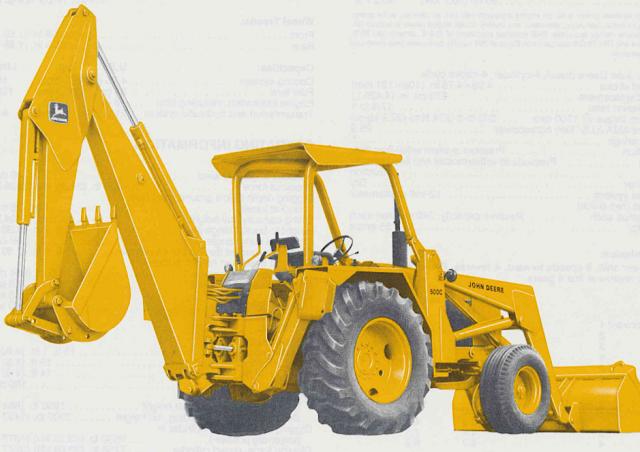

500 C John Deere Construction 500 C Specifications & Technical Data (1982—2021)
Technical specs - 500 C John Deere Construction
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 6.958 t
- Standard tyres
- F: 14 5t75-16 1. 1o-pry-ratins. F3 R: 18.4-28 8 ply-rating R4
- Bucket width
- 2.27 m
- Bucket capacity
- 0.76 m³
- Bucket capacity backhoe
- 0.071 m³
- Transport length
- 7.49 m
- Transport width
- 2.13 m
- Transport height
- 2.64 m
- Tear-out force
- 34.96 kN
- Tear-out force backhoe
- 43.25 kN
- Max. Reach horizontal
- 5.66 m
- Dredging depth
- 4.6 m
- Max. discharge height
- 3.56 m
- Travel speed
- 29 km/h
- Model series
- C
- Engine manuf.
- John Deere
- Engine type
- N/A
- Engine power
- 61.9 kW
- Displacement
- 4.425 l
- Max. torque
- 274 Nm
- No. of cylinders
- 4
- Cylinder bore x stroke
- 108x121 mm
More technical details, like: drive, dimension lxwxh, revolutions at max torque, emission level are available in the full technical specs.
Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket
Special equipment
- Outrigger stabilisers
-
Yes
- Clamshell
-
No
- Forklift utility
-
Yes
- Grabber
-
No
- Diesel particulate filter
-
Yes
- Aircondition
-
No
