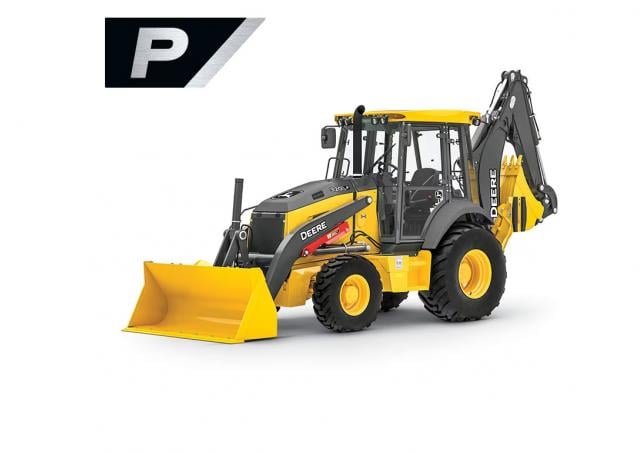

John Deere Construction 320 Specifications & Technical Data (2023-2024)

Rate this machine now!

Weight: 7.146t – Bucket width: 2.184m – Bucket capacity: 0.86m³ – Bucket capacity backhoe: 0.21m³ – Transport length: 7.28m – Transport width: 2.184m

Technical specs - 320 John Deere Construction


Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

  • Weight 7.146 t
  • Bucket width 2.184 m
  • Bucket capacity 0.86 m³
  • Bucket capacity backhoe 0.21 m³
  • Transport length 7.28 m
  • Transport width 2.184 m
  • Transport height 3.48 m
  • Tear-out force 55 kN
  • Dredging depth 4.35 m
  • Max. discharge height 2.76 m
  • Travel speed 40 km/h
  • Engine manuf. John Deere
  • Engine type PowerTech EWL 4.5L
  • Engine power 84 kW
  • Displacement 4.5 l
  • Revolutions at max torque 1900 rpm
  • Emission level Tier 4/EU Stage IV

More technical details, like: standard tyres, drive, tear-out force backhoe, max. reach horizontal, model series, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

  • Outrigger stabilisers
  • Clamshell
  • Forklift utility
  • Grabber
  • Diesel particulate filter
  • Aircondition
