310L EP John Deere Construction 310L EP Specifications & Technical Data (2017—2026)

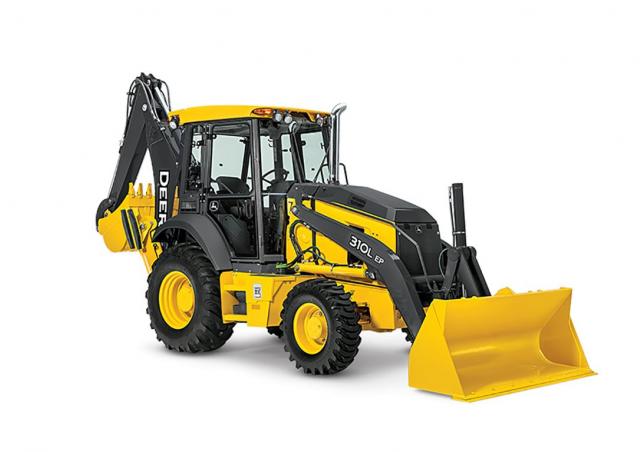

The John Deere Construction 310L EP is a backhoe loader that has been manufactured since 2017. It weighs 6.54 tons and has a trans…

The John Deere Construction 310L EP is a backhoe loader that has been manufactured since 2017. It weighs 6.54 tons and has a transport length of 7.24 meters. The bucket capacity is 0.77 cubic meters, with a tear-out force of 41.6 kilonewtons. It has a dredging depth of 4.3 meters and a bucket width of 2.18 meters. The maximum discharge height is 2.74 meters, and the maximum reach horizontal is 5.42 meters. It has a travel speed of 31.6 kilometers per hour. The transport width is 2.18 meters, and the transport height is 2.81 meters. The backhoe bucket capacity is 0.18 cubic meters, with a tear-out force of 48.2 kilonewtons.

310L EP

Years of manufacture: 2017—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 310L EP John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 6.54 t

Standard tyres: F:12.5/80-18 F3 (12) R: 19.5-24 R4 (12)

Bucket width: 2.18 m

Bucket capacity: 0.77 m³

Bucket capacity backhoe: 0.18 m³

Drive: A

Transport length: 7.24 m

Transport width: 2.18 m

Transport height: 2.81 m

Tear-out force: 41.6 kN

Tear-out force backhoe: 48.2 kN

Max. Reach horizontal: 5.42 m

Dredging depth: 4.3 m

Max. discharge height: 2.74 m

Travel speed: 31.6 km/h

Model series: L

Engine manuf.: Yanmar

Engine type: 4TNV98CT

Engine power: 52 kW

Displacement: 4.5 l

Revolutions at max torque: 1900 rpm

Max. torque: 311/1500 Nm

No. of cylinders: 4

Emission level: Tier 4/EU IIIB

More technical details, like: dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: No
Clamshell: No
Forklift utility: No
Grabber: No
Diesel particulate filter: No
Aircondition: No

Download datasheets (PDF)

John Deere Construction 310L EP FAQ

When was the John Deere Construction 310L EP manufactured?

The John Deere Construction 310L EP was first produced in 2017.

How much does the John Deere Construction 310L EP weigh?

The John Deere Construction 310L EP weighs 6.54 tons.

What are the transport dimensions of the John Deere Construction 310L EP backhoe loader?

The John Deere Construction 310L EP has a transport length of 7.24 meters, a transport width of 2.18 meters, and a transport height of 2.81 meters.

What is the travel speed of the John Deere Construction 310L EP backhoe loader?

The John Deere Construction 310L EP backhoe loader has a travel speed of 31.6 km/h.

What are the undercarriage specifications of the John Deere Construction 310L EP backhoe loader?

The John Deere Construction 310L EP features an all-wheel drive system with standard tyres sized Front: 12.5/80-18 F3 (12) and Rear: 19.5-24 R4 (12).

What are the excavation performance specifications of the John Deere Construction 310L EP backhoe loader?

The John Deere Construction 310L EP has a dredging depth of 4.3 meters and a maximum horizontal reach of 5.42 meters.

What are the tear-out forces of the John Deere Construction 310L EP backhoe loader?

The John Deere Construction 310L EP has a tear-out force of 41.6 kN and a backhoe tear-out force of 48.2 kN.

What is the maximum discharge height of the John Deere Construction 310L EP?

The John Deere Construction 310L EP has a maximum discharge height of 2.74 meters.

What are the specifications of the primary work tool on the John Deere Construction 310L EP?

The John Deere Construction 310L EP has a bucket capacity of 0.77 cubic meters, a bucket width of 2.18 meters, and a backhoe bucket capacity of 0.18 cubic meters.
