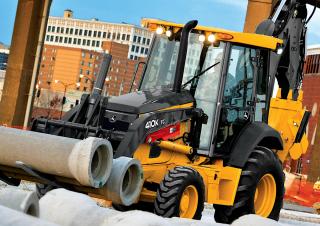

310 SK John Deere Construction 310 SK Specifications & Technical Data (2012—2021)

The John Deere Construction 310 SK is a backhoe loader manufactured by John Deere Construction from 2012 to 2021. It has a weight …

The John Deere Construction 310 SK is a backhoe loader manufactured by John Deere Construction from 2012 to 2021. It has a weight of 6.671 tons and a transport length of 7.16 meters. The bucket capacity is 0.86 cubic meters, with a tear-out force of 49.2 kilonewtons. It can dredge up to a depth of 5.61 meters and has a bucket width of 2.184 meters. The maximum discharge height is 4.29 meters, and it has a maximum reach horizontal of 7.72 meters. The travel speed of this backhoe loader is 40 kilometers per hour. It has a transport width of 2.18 meters and a transport height of 2.79 meters. Additionally, it is equipped with special equipment including a diesel particulate filter, forklift utility, and outrigger stabilizers. The backhoe bucket capacity is 0.21 cubic meters, and it has a tear-out force of 53.3 kilonewtons.

Backhoe Loaders John Deere Construction 310 SK

Technical specs - 310 SK John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
6.671 t
Standard tyres
F: 11L-16 F-3 R: 19.5L-24 R-4
Bucket width
2.184 m
Bucket capacity
0.86 m³
Bucket capacity backhoe
0.21 m³
Transport length
7.16 m
Transport width
2.18 m
Transport height
2.79 m
Tear-out force
49.2 kN
Tear-out force backhoe
53.3 kN
Max. Reach horizontal
7.72 m
Dredging depth
5.61 m
Max. discharge height
4.29 m
Travel speed
40 km/h
Model series
K
Engine manuf.
John Deere
Engine type
4045HT073
Engine power
72 kW
Displacement
4.5 l
Max. torque
399 Nm
No. of cylinders
4
Emission level
EPA Interm Tier 4/EU Stage IIIB

More technical details, like: drive, dimension lxwxh, revolutions at max torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
Yes
Clamshell
No
Forklift utility
Yes
Grabber
No
Diesel particulate filter
Yes
Aircondition
No

Download datasheets (PDF)

John Deere Construction 310 SK FAQ

When was the John Deere Construction 310 SK manufactured?

The John Deere Construction 310 SK was manufactured from 2012 to 2021.

How much does the John Deere Construction 310 SK weigh?

The John Deere Construction 310 SK weighs 6.67 tons.

What are the transport dimensions of the John Deere Construction 310 SK backhoe loader?

The transport dimensions of the John Deere Construction 310 SK are 7.16 meters in length, 2.18 meters in width, and 2.79 meters in height.

What is the travel speed of the John Deere Construction 310 SK backhoe loader?

The John Deere Construction 310 SK has a travel speed of 40 km/h.

What are the undercarriage specifications of the John Deere Construction 310 SK backhoe loader?

The John Deere Construction 310 SK is equipped with standard tyres: Front 11L-16 F-3 and Rear 19.5L-24 R-4.

What are the excavation performance specifications of the John Deere Construction 310 SK backhoe loader?

The John Deere Construction 310 SK has a dredging depth of 5.61 meters and a maximum horizontal reach of 7.72 meters.

What are the tear-out forces of the John Deere Construction 310 SK backhoe loader?

The John Deere Construction 310 SK has a tear-out force of 49.2 kN and a backhoe tear-out force of 53.3 kN.

What is the maximum discharge height of the John Deere Construction 310 SK?

The John Deere Construction 310 SK has a maximum discharge height of 4.29 meters.

What are the specifications of the primary work tool on the John Deere Construction 310 SK backhoe loader?

The John Deere Construction 310 SK has a bucket capacity of 0.86 cubic meters, a bucket width of 2.18 meters, and a backhoe bucket capacity of 0.21 cubic meters.

How much is a John Deere Construction 310 SK Backhoe loader (2012u20132021) worth?

The residual value of the John Deere Construction 310 SK depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
