SITEMASTER JCB SITEMASTER Specifications & Technical Data (1990—1995)

The JCB SITEMASTER is a backhoe loader manufactured by JCB from 1990 to 1995. It has a weight of 7.103 tons and a transport length…

The JCB SITEMASTER is a backhoe loader manufactured by JCB from 1990 to 1995. It has a weight of 7.103 tons and a transport length of 7.59 meters. The bucket capacity is 0.85 cubic meters, with a dredging depth of 5.56 meters and a bucket width of 2.24 meters. The maximum discharge height is 5.89 meters, and it has a maximum reach horizontal of 7.67 meters. The travel speed of this backhoe loader is 33.2 kilometers per hour. It has a transport width of 2.24 meters and a transport height of 3.53 meters. The backhoe bucket capacity is 0.22 cubic meters.

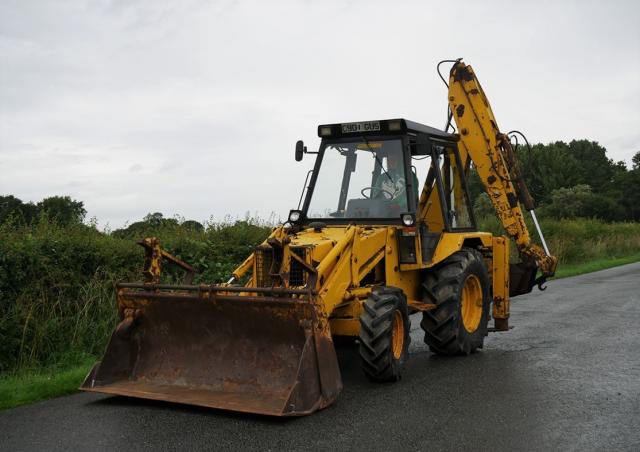

Backhoe Loaders JCB SITEMASTER

Visit JCB live at

Technical specs - SITEMASTER JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7.103 t
Standard tyres
F: 14.0-17.5 6PR. R: 19.5L-24 10PR
Bucket width
2.24 m
Bucket capacity
0.85 m³
Bucket capacity backhoe
0.22 m³
Drive
A
Transport length
7.59 m
Transport width
2.24 m
Transport height
3.53 m
Max. Reach horizontal
7.67 m
Dredging depth
5.56 m
Max. discharge height
5.89 m
Travel speed
33.2 km/h
Engine manuf.
Perkins
Engine type
1004 THR
Engine power
62 kW
Displacement
4 l
Revolutions at max torque
2200 rpm
Max. torque
309 Nm
No. of cylinders
4
Cylinder bore x stroke
100x127 mm

More technical details, like: tear-out force, tear-out force backhoe, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
No
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download datasheets (PDF)

JCB SITEMASTER FAQ

When was the JCB SITEMASTER manufactured?

The JCB SITEMASTER was manufactured from 1990 to 1995.

How much does the JCB SITEMASTER weigh?

The JCB SITEMASTER weighs 7.1 tons.

What are the transport dimensions of the JCB SITEMASTER backhoe loader?

The JCB SITEMASTER has a transport length of 7.59 meters, a transport width of 2.24 meters, and a transport height of 3.53 meters.

What is the travel speed of the JCB SITEMASTER backhoe loader?

The JCB SITEMASTER backhoe loader has a travel speed of 33.2 km/h.

What are the undercarriage specifications of the JCB SITEMASTER backhoe loader?

The JCB SITEMASTER backhoe loader features an all-wheel drive system and standard tyres sized Front: 14.0-17.5 6PR and Rear: 19.5L-24 10PR.

What are the dredging depth and maximum horizontal reach of the JCB SITEMASTER backhoe loader?

The JCB SITEMASTER has a dredging depth of 5.56 meters and a maximum horizontal reach of 7.67 meters.

What is the maximum discharge height of the JCB SITEMASTER?

The JCB SITEMASTER has a maximum discharge height of 5.89 meters.

What are the primary work tool specifications of the JCB SITEMASTER backhoe loader?

The JCB SITEMASTER features a bucket capacity of 0.85 cubic meters, a bucket width of 2.24 meters, and a backhoe bucket capacity of 0.22 cubic meters.

How much is a JCB SITEMASTER Backhoe loader (1990u20131995) worth?

The residual value of the JCB SITEMASTER depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

JCB SITEMASTER overview

JCB SITEMASTER features overview

Super Sitemaster Standard Features

Hydraulically operated Quick-fit loader carriageQuick-fit mounted 6-in-1 1.1 cu. yd. Loader BucketQuick-fit mounted fork frame with 48in. (1.2m) Pallet ForksAll other features as per the Standard Sitemaster


Hydraulics

JCB Double Pump System

JCB exclusive double pump system with pressure sensitive off loader valve to provide optimum flow to match system pressure and keep work rates up and fuel consumption down under all conditions.


Standard equipment

JCB Max-Trac Axles and Transmission

JCB Max-Trac axles with outboard planetary reduction, self locking, torque proportioning differentials and oil-immersed inboard disc brakes. The Synchro Shuttle transmission combines an integral torque converter and fully-synchronized 4-speed gearbox with an electric over hydraulic reversing shuttle for fast and smooth directional changes.


High Performance Powertrain

Based on the first and only axles ever built specifically for backhoe loaders, the unique JCB Max-Trac axle uses outboard planetary reduction and self-locking torque proportioning differentials to always apply the drive power to where it’s needed most: the wheels with the best grip. In combination with 4-wheel drive, and always automatically engaged, the Max-Trac system enables the machine to cope with even the most difficult site conditions and gradients, without the steering problems, prematurely worn drive shafts or excessively worn tires associated with conventional diff-lock systems.
