4CX Pro JCB 4CX Pro Specifications & Technical Data (2021—2026)

The JCB 4CX Pro is a backhoe loader manufactured by JCB since 2021. It has a weight of 8.58 tons and a transport length of 5.91 me…

The JCB 4CX Pro is a backhoe loader manufactured by JCB since 2021. It has a weight of 8.58 tons and a transport length of 5.91 meters. The bucket capacity is 1 cubic meter, with a dredging depth of 4.32 meters and a bucket width of 2.35 meters. The maximum discharge height is 2.69 meters, and it has a maximum reach horizontal of 5.4 meters. The travel speed of this backhoe loader is 40 kilometers per hour. It has a transport width of 2.36 meters and a transport height of 3.62 meters. Additionally, it is equipped with air conditioning and outrigger stabilizers.

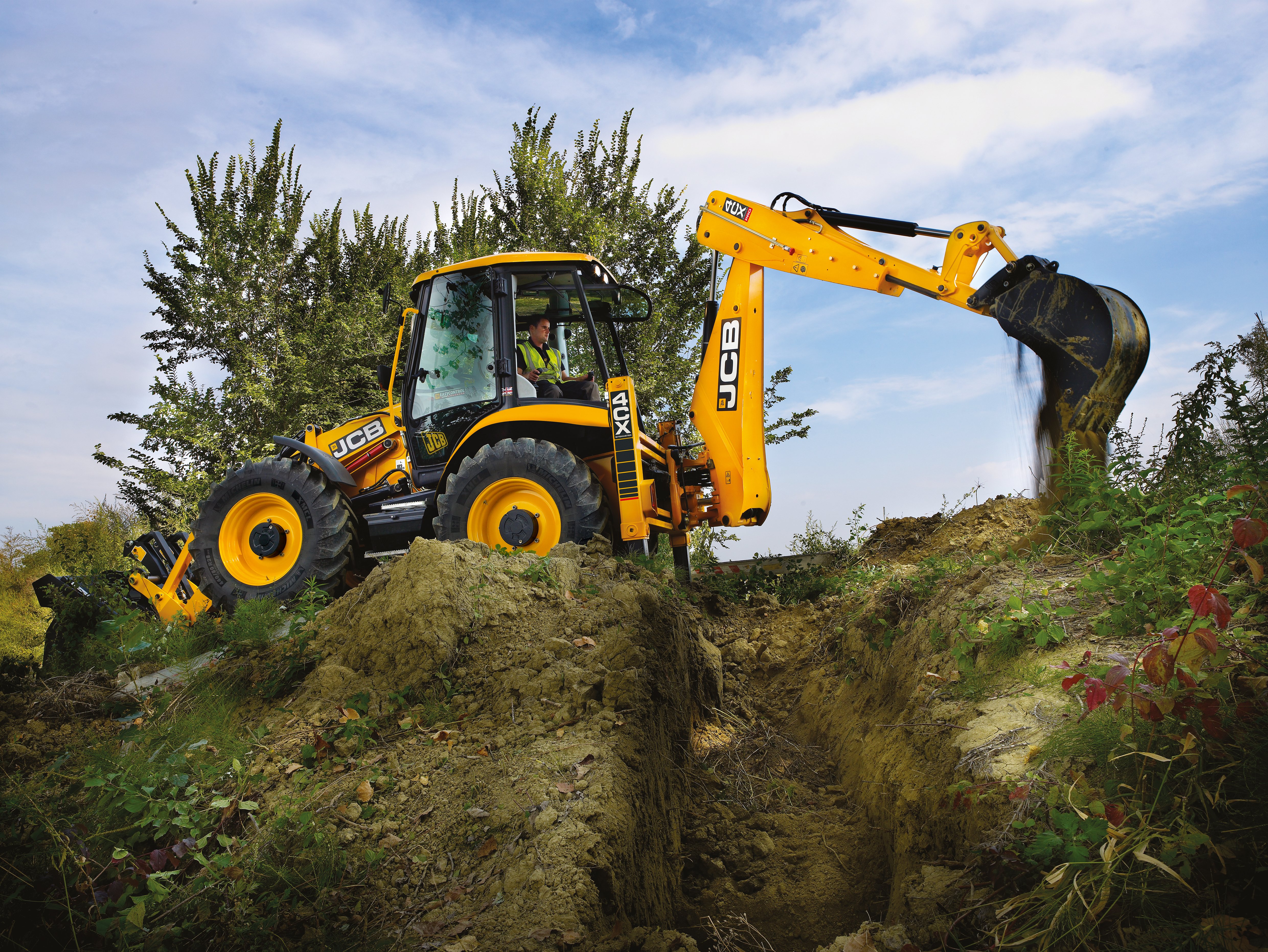

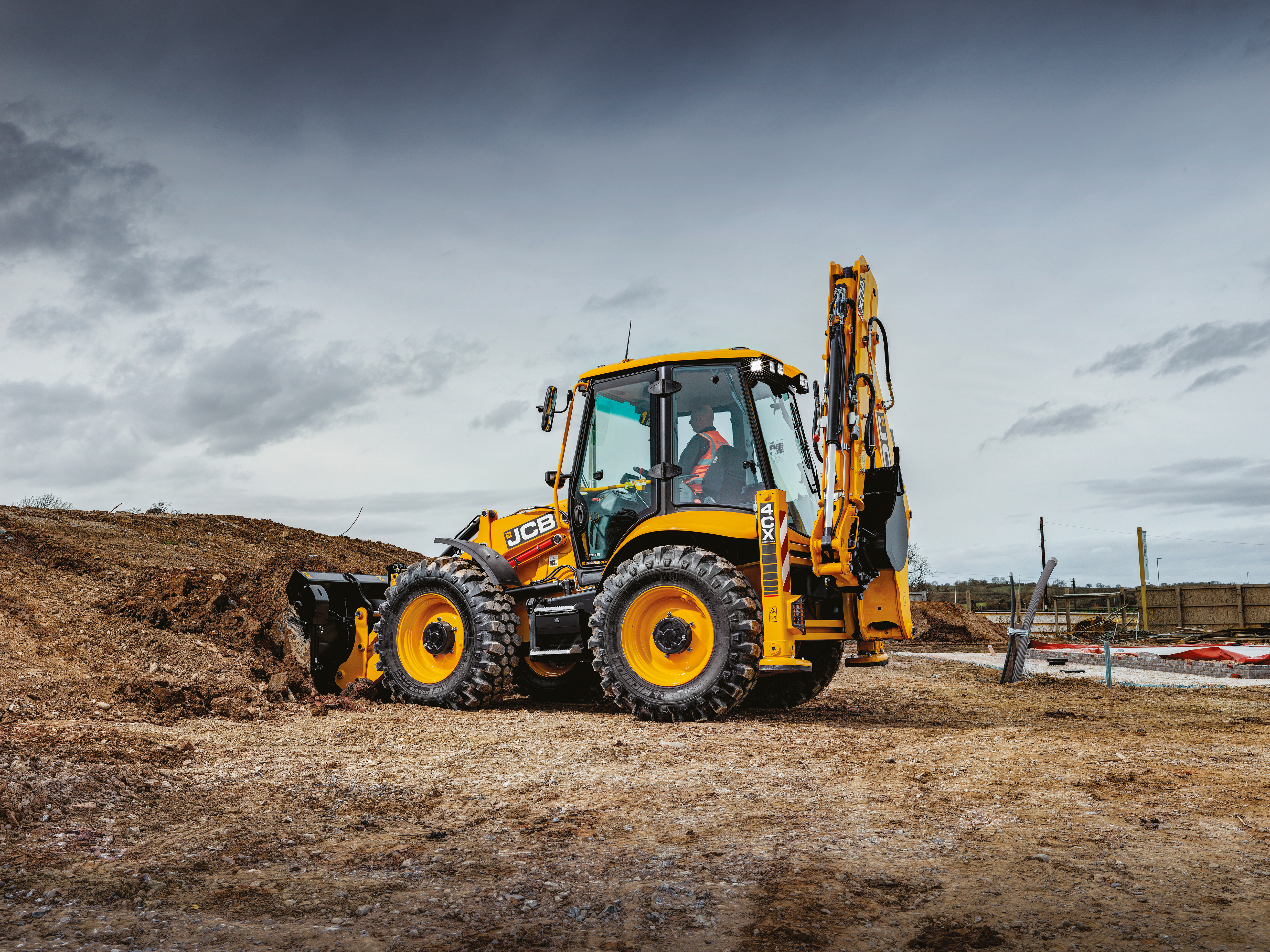

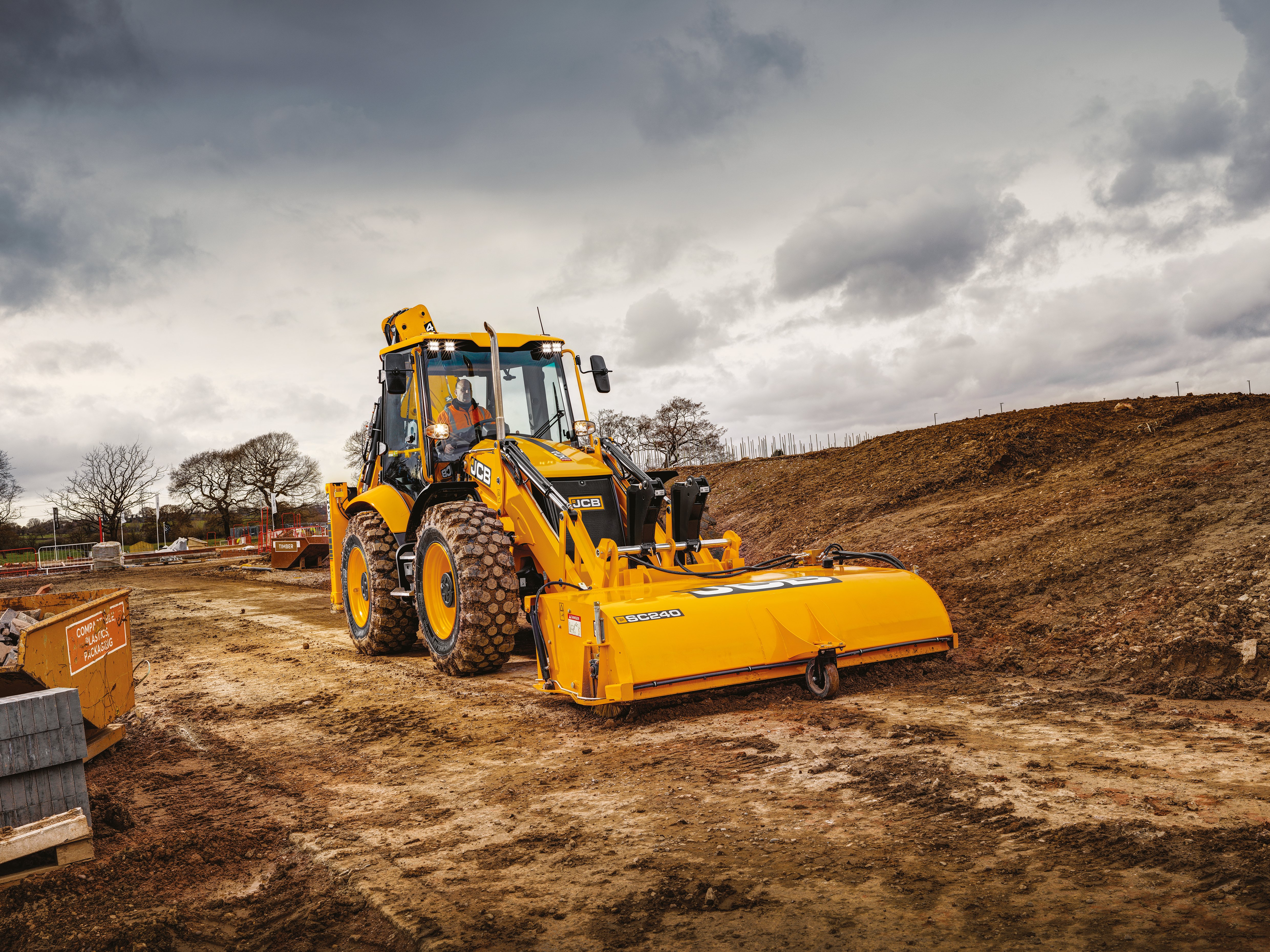

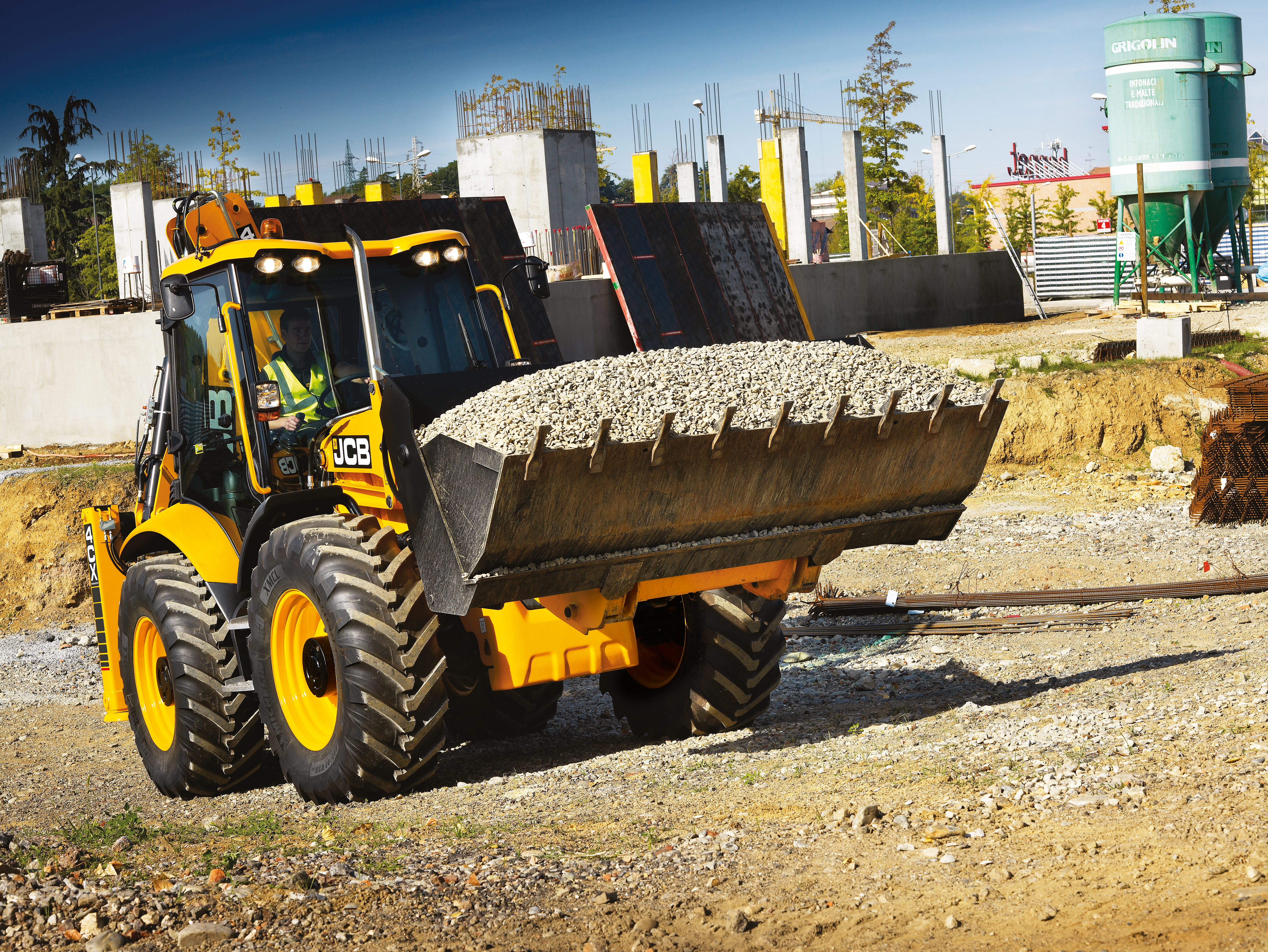

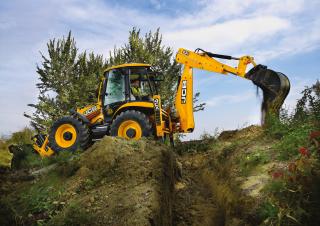

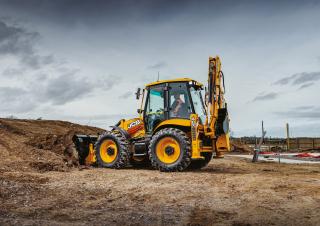

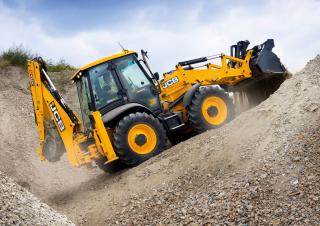

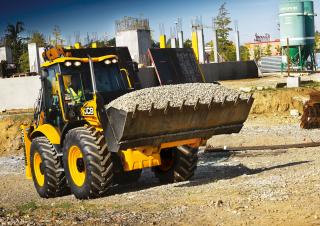

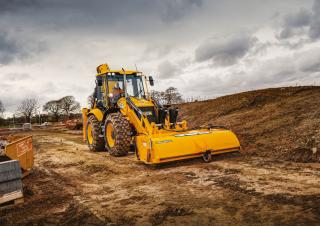

Backhoe Loaders JCB 4CX Pro
Backhoe Loaders JCB 4CX Pro
Backhoe Loaders JCB 4CX Pro
Backhoe Loaders JCB 4CX Pro
Backhoe Loaders JCB 4CX Pro
Backhoe Loaders JCB 4CX Pro
Backhoe Loaders JCB 4CX Pro
Backhoe Loaders JCB 4CX Pro
Backhoe Loaders JCB 4CX Pro
Backhoe Loaders JCB 4CX Pro

Visit JCB live at

Technical specs - 4CX Pro JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.58 t
Standard tyres
440/80-28
Bucket width
2.35 m
Bucket capacity
1 m³
Drive
A
Transport length
5.91 m
Transport width
2.36 m
Transport height
3.62 m
Tear-out force
52.8 kN
Max. Reach horizontal
5.4 m
Dredging depth
4.32 m
Max. discharge height
2.69 m
Travel speed
40 km/h
Model series
CX
Engine manuf.
JCB
Engine type
EcoMax
Engine power
81 kW
Displacement
4.8 l
Revolutions at max torque
1450 rpm
Max. torque
516 Nm
No. of cylinders
4
Cylinder bore x stroke
106x112 mm
Emission level
V

More technical details, like: bucket capacity backhoe, tear-out force backhoe, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
Yes
Clamshell
Yes
Forklift utility
Yes
Grabber
No
Diesel particulate filter
Yes
Aircondition
Yes

Download datasheets (PDF)

JCB 4CX Pro FAQ

When was the JCB 4CX Pro manufactured?

The JCB 4CX Pro was first produced in 2021.

How much does the JCB 4CX Pro backhoe loader weigh?

The JCB 4CX Pro backhoe loader weighs 8.58 tons.

What are the transport dimensions of the JCB 4CX Pro backhoe loader?

The JCB 4CX Pro has a transport length of 5.91 meters, a transport width of 2.36 meters, and a transport height of 3.62 meters.

What is the travel speed of the JCB 4CX Pro backhoe loader?

The JCB 4CX Pro backhoe loader has a travel speed of 40 km/h.

What are the undercarriage specifications of the JCB 4CX Pro backhoe loader?

The JCB 4CX Pro features an all-wheel drive system and standard tyres sized 440/80-28.

What are the excavation performance specifications of the JCB 4CX Pro backhoe loader?

The JCB 4CX Pro has a dredging depth of 4.32 meters and a maximum horizontal reach of 5.4 meters.

What is the tear-out force of the JCB 4CX Pro backhoe loader?

The JCB 4CX Pro backhoe loader has a tear-out force of 52.8 kN. No power rating data is provided for this model.

What is the maximum discharge height of the JCB 4CX Pro?

The JCB 4CX Pro has a maximum discharge height of 2.69 meters.

What are the specifications of the primary work tool on the JCB 4CX Pro backhoe loader?

The JCB 4CX Pro backhoe loader has a bucket with a capacity of 1 cubic meter and a width of 2.35 meters.
