4CX 15FT JCB 4CX 15FT Specifications & Technical Data (2011—2022)

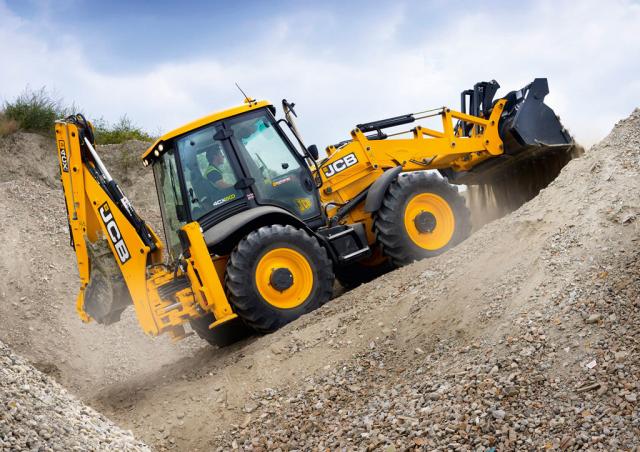

The JCB 4CX 15FT is a backhoe loader manufactured by JCB from 2011 to 2022. It has a weight of 7.976 tons and a transport length o…

The JCB 4CX 15FT is a backhoe loader manufactured by JCB from 2011 to 2022. It has a weight of 7.976 tons and a transport length of 7.47 meters. The bucket capacity is 1.3 cubic meters, with a dredging depth of 6.12 meters and a bucket width of 2.44 meters. The maximum discharge height is 6.4 meters, and it has a maximum reach horizontal of 8.2 meters. The travel speed of this backhoe loader is 40 kilometers per hour. It has a transport width of 2.35 meters and a transport height of 3.89 meters.

Backhoe Loaders JCB 4CX 15FT

Visit JCB live at

Technical specs - 4CX 15FT JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7.976 t
Standard tyres
16.9-24 R4 12
Bucket width
2.44 m
Bucket capacity
1.3 m³
Transport length
7.47 m
Transport width
2.35 m
Transport height
3.89 m
Max. Reach horizontal
8.2 m
Dredging depth
6.12 m
Max. discharge height
6.4 m
Travel speed
40 km/h
Engine manuf.
JCB
Engine type
N/A
Engine power
74 kW
Displacement
4.4 l
Revolutions at max torque
2200 rpm
Max. torque
440 Nm
No. of cylinders
4

More technical details, like: bucket capacity backhoe, drive, tear-out force, tear-out force backhoe, model series, dimension lxwxh, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
No
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download datasheets (PDF)

JCB 4CX 15FT FAQ

When was the JCB 4CX 15FT manufactured?

The JCB 4CX 15FT was manufactured from 2011 to 2022.

How much does the JCB 4CX 15FT weigh?

The JCB 4CX 15FT weighs 7.98 tons.

What are the transport dimensions of the JCB 4CX 15FT backhoe loader?

The JCB 4CX 15FT has a transport length of 7.47 meters, a transport width of 2.35 meters, and a transport height of 3.89 meters.

What is the travel speed of the JCB 4CX 15FT backhoe loader?

The JCB 4CX 15FT backhoe loader has a travel speed of 40 km/h.

What are the undercarriage specifications of the JCB 4CX 15FT backhoe loader?

The JCB 4CX 15FT is equipped with standard tyres sized 16.9-24 R4 12.

What are the dredging depth and maximum horizontal reach of the JCB 4CX 15FT backhoe loader?

The JCB 4CX 15FT has a dredging depth of 6.12 meters and a maximum horizontal reach of 8.2 meters.

What is the maximum discharge height of the JCB 4CX 15FT?

The JCB 4CX 15FT has a maximum discharge height of 6.4 meters.

What are the bucket specifications of the JCB 4CX 15FT backhoe loader?

The JCB 4CX 15FT has a bucket capacity of 1.3 cubic meters and a bucket width of 2.44 meters.

How much is a JCB 4CX 15FT Backhoe loader (2011u20132022) worth?

The residual value of the JCB 4CX 15FT depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
