4CX 14FT JCB 4CX 14FT Specifications & Technical Data (2011—2022)

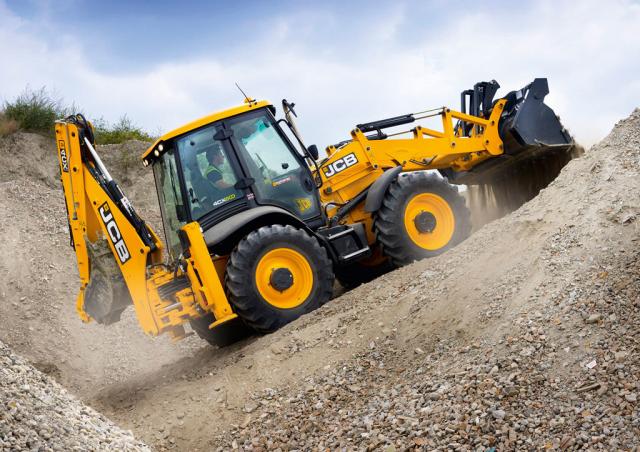

The JCB 4CX 14FT is a backhoe loader manufactured by JCB from 2011 to 2022. It has a weight of 7.462 tons and a transport length o…

The JCB 4CX 14FT is a backhoe loader manufactured by JCB from 2011 to 2022. It has a weight of 7.462 tons and a transport length of 7.37 meters. The bucket capacity is 1.3 cubic meters, with a dredging depth of 5.63 meters and a bucket width of 2.44 meters. The maximum discharge height is 6.25 meters, and it has a maximum reach horizontal of 7.77 meters. The travel speed of this backhoe loader is 40 kilometers per hour. It has a transport width of 2.45 meters and a transport height of 3.43 meters.

Backhoe Loaders JCB 4CX 14FT

Visit JCB live at

Technical specs - 4CX 14FT JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7.462 t
Standard tyres
16.9-24 R4 12
Bucket width
2.44 m
Bucket capacity
1.3 m³
Transport length
7.37 m
Transport width
2.45 m
Transport height
3.43 m
Max. Reach horizontal
7.77 m
Dredging depth
5.63 m
Max. discharge height
6.25 m
Travel speed
40 km/h
Engine manuf.
JCB
Engine type
N/A
Engine power
74 kW
Displacement
4.4 l
Revolutions at max torque
2200 rpm
Max. torque
440 Nm
No. of cylinders
4

More technical details, like: bucket capacity backhoe, drive, tear-out force, tear-out force backhoe, model series, dimension lxwxh, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
No
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download datasheets (PDF)

JCB 4CX 14FT FAQ

When was the JCB 4CX 14FT manufactured?

The JCB 4CX 14FT was manufactured from 2011 to 2022.

How much does the JCB 4CX 14FT backhoe loader weigh?

The JCB 4CX 14FT backhoe loader weighs 7.46 tons.

What are the transport dimensions of the JCB 4CX 14FT backhoe loader?

The JCB 4CX 14FT has a transport length of 7.37 meters, a transport width of 2.45 meters, and a transport height of 3.43 meters.

What is the travel speed of the JCB 4CX 14FT backhoe loader?

The JCB 4CX 14FT backhoe loader has a travel speed of 40 km/h.

What are the undercarriage specifications of the JCB 4CX 14FT backhoe loader?

The JCB 4CX 14FT backhoe loader is equipped with standard tyres sized 16.9-24 R4 12.

What are the dredging depth and maximum horizontal reach of the JCB 4CX 14FT backhoe loader?

The JCB 4CX 14FT has a dredging depth of 5.63 meters and a maximum horizontal reach of 7.77 meters.

What is the material handling capacity of the JCB 4CX 14FT in terms of discharge height?

The JCB 4CX 14FT has a maximum discharge height of 6.25 meters for material handling.

What are the specifications of the primary work tool bucket on the JCB 4CX 14FT backhoe loader?

The primary work tool bucket of the JCB 4CX 14FT has a capacity of 1.3 cubic meters and a width of 2.44 meters.

How much is a JCB 4CX 14FT Backhoe loader (2011u20132022) worth?

The residual value of the JCB 4CX 14FT depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
