4CX JCB 4CX Specifications & Technical Data (2009—2017)

Model rating: 10,00 / 10

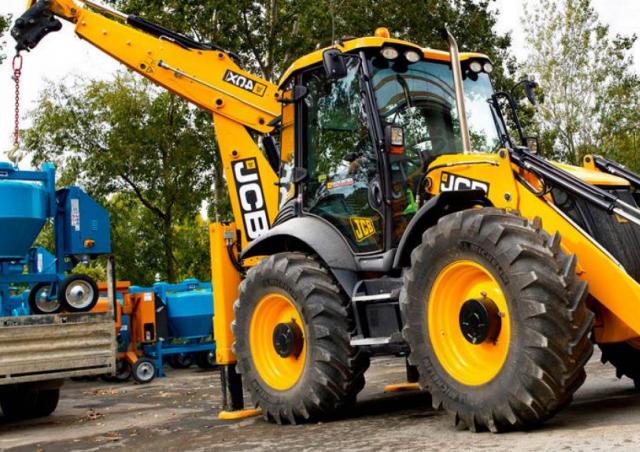

The JCB 4CX is a backhoe loader manufactured by JCB from 2009 to 2017. It has a weight of 8.18 tons and a transport length of 5.91…

The JCB 4CX is a backhoe loader manufactured by JCB from 2009 to 2017. It has a weight of 8.18 tons and a transport length of 5.91 meters. The bucket capacity is 1.2 cubic meters, with a tear-out force of 61.06 kilonewtons. The dredging depth is 4.32 meters, and the bucket width is 2.33 meters. The maximum discharge height is 2.69 meters, and the maximum reach horizontal is 5.4 meters. It has a travel speed of 40 kilometers per hour. The transport width is 2.36 meters, and the transport height is 3.54 meters. The backhoe has a bucket capacity of 0.26 cubic meters and a tear-out force of 53.25 kilonewtons. It also comes with special equipment including a clamshell, forklift utility, and outrigger stabilizers.

4CX

Years of manufacture: 2009—2017

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 4CX JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 8.18 t

Standard tyres: 16.9-24

Bucket width: 2.33 m

Bucket capacity: 1.2 m³

Bucket capacity backhoe: 0.26 m³

Drive: A

Transport length: 5.91 m

Transport width: 2.36 m

Transport height: 3.54 m

Tear-out force: 61.06 kN

Tear-out force backhoe: 53.25 kN

Max. Reach horizontal: 5.4 m

Dredging depth: 4.32 m

Max. discharge height: 2.69 m

Travel speed: 40 km/h

Model series: CX

Engine manuf.: JCB

Engine type: 444

Engine power: 81 kW

Displacement: 4.4 l

Revolutions at max torque: 1300 rpm

Max. torque: 516 Nm

No. of cylinders: 4

Cylinder bore x stroke: 103x132 mm

More technical details, like: dimension lxwxh, emission level, backhoe type, engine manufacturer, engine model, aspiration, rated speed, engine output - net, engine output - gross, transmission type, number of travel speeds, drive - 2wd / 4wd, service brake type, length - roading, height - over cab, maximum height, width, ground clearance, width - standard shovel, stabiliser type, maximum dig depth - longest dipper, dig depth - sae, dig depth - sae retracted dipper, dig depth - sae extended dipper, reach from slew pivot - non-extending dipper, reach from slew pivot - retracted dipper, reach from slew pivot - extended dipper, loading height - non-extending dipper, loading height - retracted dipper, loading height - extended dipper, dump height - general purpose, dump angle - general purpose, dump height - multi-purpose, dump angle - multi-purpose, fuel tank, shovel capacity - standard general purpose, shovel capacity - multi-purpose, bucket tearout - non-extending dipper, dipper tearout - non-extending dipper, shovel breakout - general purpose, shovel breakout - multi-purpose, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: Yes
Clamshell: Yes
Forklift utility: Yes
Grabber: No
Diesel particulate filter: No
Aircondition: No

Download datasheets (PDF)

JCB 4CX FAQ

When was the JCB 4CX manufactured?

The JCB 4CX was manufactured from 2009 to 2017.

How much does the JCB 4CX backhoe loader weigh?

The JCB 4CX backhoe loader weighs 8.18 tons.

What are the transport dimensions of the JCB 4CX backhoe loader?

The JCB 4CX backhoe loader has a transport length of 5.91 meters, a transport width of 2.36 meters, and a transport height of 3.54 meters.

What is the travel speed of the JCB 4CX backhoe loader?

The JCB 4CX backhoe loader has a travel speed of 40 km/h.

What are the undercarriage specifications of the JCB 4CX backhoe loader?

The JCB 4CX backhoe loader features an all-wheel drive system and standard tyres sized 16.9-24.

What are the excavation performance specifications of the JCB 4CX backhoe loader?

The JCB 4CX backhoe loader has a dredging depth of 4.32 meters and a maximum horizontal reach of 5.4 meters.

What are the tear-out forces of the JCB 4CX backhoe loader?

The JCB 4CX has a tear-out force of 61.06 kN and a backhoe tear-out force of 53.25 kN.

What is the material handling capacity of the JCB 4CX in terms of discharge height?

The JCB 4CX has a maximum discharge height of 2.69 meters.

What are the specifications of the primary work tool on the JCB 4CX backhoe loader?

The JCB 4CX features a bucket capacity of 1.2 cubic meters, a bucket width of 2.33 meters, and a backhoe bucket capacity of 0.26 cubic meters.
