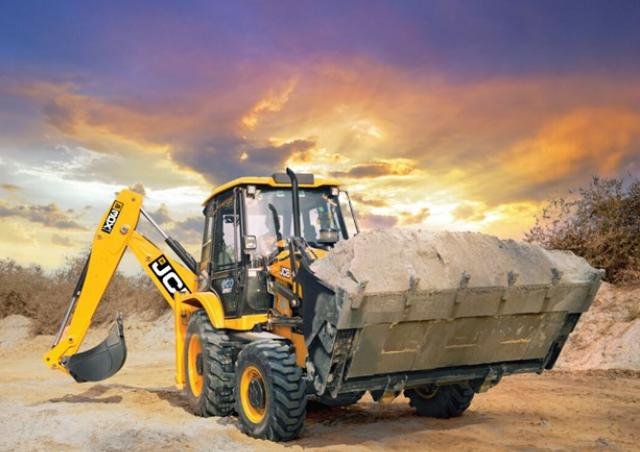

3DX PLUS JCB 3DX PLUS Specifications & Technical Data (2022—2026)
.jpg)
.jpg)
Visit JCB live at
.jpg){kind=logo}
Technical specs - 3DX PLUS JCB
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 7.51 t
- Standard tyres
- FR: 9 x 16 - 16 PR RE: 16.9 x 28 - 12 PR
- Bucket width
- 2.35 m
- Bucket capacity
- 1.1 m³
- Bucket capacity backhoe
- 0.18 m³
- Drive
- H
- Transport length
- 5.9 m
- Transport width
- 2.4 m
- Transport height
- 3.61 m
- Tear-out force backhoe
- 58.4 kN
- Max. Reach horizontal
- 5.4 m
- Dredging depth
- 4.77 m
- Max. discharge height
- 2.74 m
- Travel speed
- 36 km/h
- Model series
- DX
- Engine manuf.
- JCB
- Engine type
- 444
- Engine power
- 55 kW
- Displacement
- 4.4 l
- Revolutions at max torque
- 1200 rpm
- Max. torque
- 400 Nm
- No. of cylinders
- 4
- Emission level
- CEV Stage IV
More technical details, like: tear-out force, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.
Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket
Special equipment
- Outrigger stabilisers
-
No
- Clamshell
-
No
- Forklift utility
-
No
- Grabber
-
No
- Diesel particulate filter
-
No
- Aircondition
-
No
JCB 3DX PLUS FAQ
How much does the JCB 3DX PLUS weigh?
What are the transport dimensions of the JCB 3DX PLUS backhoe loader?
What is the travel speed of the JCB 3DX PLUS backhoe loader?
What are the undercarriage specifications of the JCB 3DX PLUS?
What is the excavation performance of the JCB 3DX PLUS backhoe loader?
What is the tear-out force rating of the JCB 3DX PLUS backhoe?
What is the maximum discharge height of the JCB 3DX PLUS?
What are the specifications of the primary work tool on the JCB 3DX PLUS?
How much is a JCB 3DX PLUS Backhoe loader (2022u20132025) worth?
Events
Visit JCB live at
.jpg){kind=logo}
Machine inspection
Ask for inspection of your JCB 3DX PLUS from experts
Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.
Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.
Provided by:
Buy & Rent
Compare JCB 3DX PLUS with similar Backhoe Loaders
.jpg)

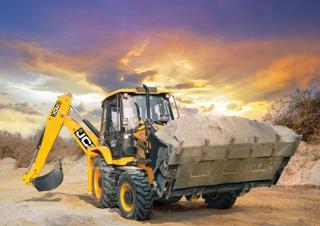

JCB 3DX PLUS
