3DX JCB 3DX Specifications & Technical Data (2012—2022)

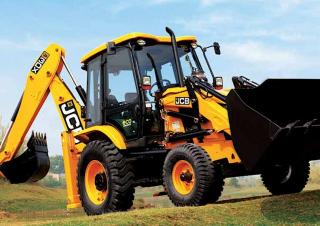

The JCB 3DX is a backhoe loader manufactured by JCB from 2012 to 2022. It has a weight of 7.46 tons and a transport length of 5.9 …

The JCB 3DX is a backhoe loader manufactured by JCB from 2012 to 2022. It has a weight of 7.46 tons and a transport length of 5.9 meters. The dredging depth is 4.77 meters, and the bucket width is 2.35 meters. The maximum discharge height is 5.97 meters, and the maximum reach horizontal is 6.72 meters. It has a travel speed of 36 km/h and a transport width of 2.35 meters. The transport height is 3.61 meters. The backhoe bucket capacity is 0.3 cubic meters.

Backhoe Loaders JCB 3DX

Visit JCB live at

Technical specs - 3DX JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7.46 t
Standard tyres
F: 9x16-16PR. R: 16.9x28-12PR
Bucket width
2.35 m
Bucket capacity backhoe
0.3 m³
Drive
A
Transport length
5.9 m
Transport width
2.35 m
Transport height
3.61 m
Max. Reach horizontal
6.72 m
Dredging depth
4.77 m
Max. discharge height
5.97 m
Travel speed
36 km/h
Engine manuf.
JCB
Engine type
448
Engine power
56 kW
Displacement
4.8 l
Revolutions at max torque
2200 rpm
Max. torque
310 Nm
No. of cylinders
4

More technical details, like: bucket capacity, tear-out force, tear-out force backhoe, model series, dimension lxwxh, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
No
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download datasheets (PDF)

JCB 3DX FAQ

When was the JCB 3DX manufactured?

The JCB 3DX was manufactured from 2012 to 2022.

How much does the JCB 3DX backhoe loader weigh?

The JCB 3DX backhoe loader weighs 7.46 tons.

What are the transport dimensions of the JCB 3DX backhoe loader?

The JCB 3DX has a transport length of 5.9 meters, a transport width of 2.35 meters, and a transport height of 3.61 meters.

What is the travel speed of the JCB 3DX backhoe loader?

The JCB 3DX backhoe loader has a travel speed of 36 km/h.

What are the undercarriage specifications of the JCB 3DX backhoe loader?

The JCB 3DX backhoe loader features an all-wheel drive system and standard tyres sized Front: 9x16-16PR and Rear: 16.9x28-12PR.

What are the dredging depth and maximum horizontal reach of the JCB 3DX backhoe loader?

The JCB 3DX backhoe loader has a dredging depth of 4.77 meters and a maximum horizontal reach of 6.72 meters.

What is the material handling capacity of the JCB 3DX in terms of discharge height?

The JCB 3DX has a maximum discharge height of 5.97 meters.

What are the specifications of the primary work tool on the JCB 3DX backhoe loader?

The primary work tool of the JCB 3DX backhoe loader has a bucket width of 2.35 meters and a backhoe bucket capacity of 0.3 cubic meters.
