3DX JCB 3DX Specifications & Technical Data (2019—2026)

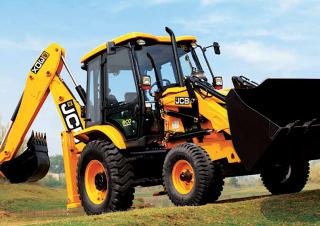

The JCB 3DX is a backhoe loader manufactured by JCB since 2019. It has a weight of 7.5 tons and a transport length of 2.35 meters.…

The JCB 3DX is a backhoe loader manufactured by JCB since 2019. It has a weight of 7.5 tons and a transport length of 2.35 meters. The bucket capacity is 1.1 cubic meters, with a dredging depth of 4.77 meters and a bucket width of 0.79 meters. The maximum reach horizontal is 5.97 meters, and it has a travel speed of 40 km/h. The transport width is 5.9 meters, and the transport height is 3.61 meters. It is equipped with outrigger stabilizers.

Backhoe Loaders JCB 3DX

Visit JCB live at

Technical specs - 3DX JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7.5 t
Standard tyres
16.9 x 28-12 PR
Bucket width
0.79 m
Bucket capacity
1.1 m³
Transport length
2.35 m
Transport width
5.9 m
Transport height
3.61 m
Max. Reach horizontal
5.97 m
Dredging depth
4.77 m
Travel speed
40 km/h
Model series
DX
Engine manuf.
JCB
Engine type
448
Engine power
56 kW
Displacement
4.8 l
Revolutions at max torque
1100 rpm
Max. torque
305 Nm
No. of cylinders
4

More technical details, like: bucket capacity backhoe, drive, tear-out force, tear-out force backhoe, max. discharge height, dimension lxwxh, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
Yes
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download datasheets (PDF)

JCB 3DX FAQ

When was the JCB 3DX manufactured?

The JCB 3DX was first produced in 2019.

How much does the JCB 3DX backhoe loader weigh?

The JCB 3DX backhoe loader weighs 7.5 tons.

What are the transport dimensions of the JCB 3DX backhoe loader?

The JCB 3DX has a transport length of 2.35 meters, a transport width of 5.9 meters, and a transport height of 3.61 meters.

What is the travel speed of the JCB 3DX backhoe loader?

The JCB 3DX backhoe loader has a travel speed of 40 km/h.

What are the standard tyre specifications of the JCB 3DX backhoe loader?

The JCB 3DX backhoe loader has standard tyres sized 16.9 x 28-12 PR.

What are the excavation performance specifications of the JCB 3DX backhoe loader?

The JCB 3DX backhoe loader has a dredging depth of 4.77 meters and a maximum horizontal reach of 5.97 meters.

What are the bucket specifications of the JCB 3DX backhoe loader?

The JCB 3DX backhoe loader has a bucket capacity of 1.1 cubic meters and a bucket width of 0.79 meters.

How much is a JCB 3DX Backhoe loader (2019u20132025) worth?

The residual value of the JCB 3DX depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
