3CX SM JCB 3CX SM Specifications & Technical Data (2007—2016)

Model rating: 8,25 / 10

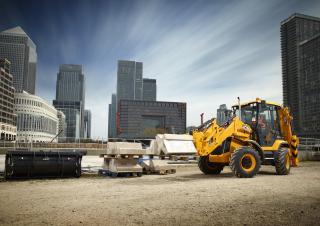

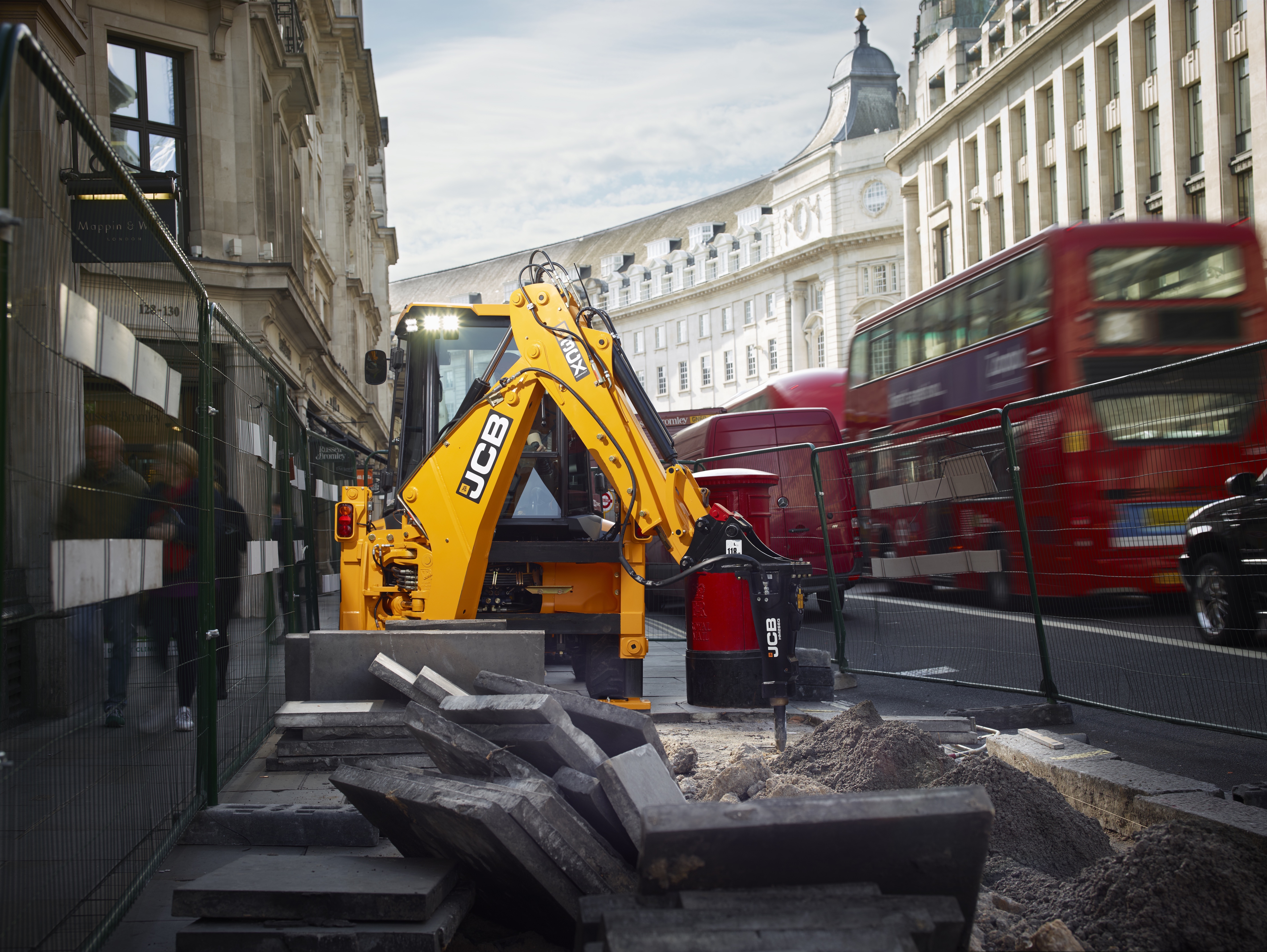

The JCB 3CX SM is a backhoe loader manufactured by JCB from 2007 to 2016. It has a weight of 8 tons and a transport length of 5.62…

The JCB 3CX SM is a backhoe loader manufactured by JCB from 2007 to 2016. It has a weight of 8 tons and a transport length of 5.62 meters. The bucket capacity is 1 cubic meter, with a tear-out force of 31.63 kN. The dredging depth is 5.97 meters, and the bucket width is 2.35 meters. The maximum discharge height is 2.74 meters, and the maximum reach horizontal is 6.52 meters. The transport width is 2.24 meters, and the transport height is 3.61 meters. It is equipped with special equipment including a clamshell, forklift utility, and outrigger stabilizers.

3CX SM

Years of manufacture: 2007—2016

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 3CX SM JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 8 t

Standard tyres: 18.4-26

Bucket width: 2.35 m

Bucket capacity: 1 m³

Drive: A

Transport length: 5.62 m

Transport width: 2.24 m

Transport height: 3.61 m

Tear-out force: 31.63 kN

Max. Reach horizontal: 6.52 m

Dredging depth: 5.97 m

Max. discharge height: 2.74 m

Model series: CX

Engine manuf.: JCB

Engine type: 444

Engine power: 68.5 kW

Displacement: 4.4 l

Revolutions at max torque: 2200 rpm

More technical details, like: bucket capacity backhoe, tear-out force backhoe, travel speed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, backhoe type, engine manufacturer, engine model, aspiration, rated speed, engine output - net, engine output - gross, transmission type, number of travel speeds, drive - 2wd / 4wd, service brake type, length - roading, height - over cab, maximum height, width, ground clearance, width - standard shovel, stabiliser type, maximum dig depth - longest dipper, dig depth - sae, dig depth - sae retracted dipper, dig depth - sae extended dipper, reach from slew pivot - non-extending dipper, reach from slew pivot - retracted dipper, reach from slew pivot - extended dipper, loading height - non-extending dipper, loading height - retracted dipper, loading height - extended dipper, dump height - general purpose, dump angle - general purpose, dump height - multi-purpose, dump angle - multi-purpose, fuel tank, shovel capacity - standard general purpose, shovel capacity - multi-purpose, bucket tearout - non-extending dipper, dipper tearout - non-extending dipper, shovel breakout - general purpose, shovel breakout - multi-purpose, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: Yes
Clamshell: Yes
Forklift utility: Yes
Grabber: No
Diesel particulate filter: No
Aircondition: No

Download datasheets (PDF)

JCB 3CX SM FAQ

When was the JCB 3CX SM manufactured?

The JCB 3CX SM was manufactured from 2007 to 2016.

How much does the JCB 3CX SM backhoe loader weigh?

The JCB 3CX SM backhoe loader weighs 8 tons.

What are the transport dimensions of the JCB 3CX SM backhoe loader?

The JCB 3CX SM has a transport length of 5.62 meters, a transport width of 2.24 meters, and a transport height of 3.61 meters.

What are the undercarriage specifications of the JCB 3CX SM backhoe loader?

The JCB 3CX SM backhoe loader features an all-wheel drive system and standard tyres sized 18.4-26.

What are the excavation specifications of the JCB 3CX SM backhoe loader?

The JCB 3CX SM has a dredging depth of 5.97 meters and a maximum horizontal reach of 6.52 meters.

What is the tear-out force of the JCB 3CX SM backhoe loader?

The JCB 3CX SM backhoe loader has a tear-out force of 31.63 kN. Note that no power rating data is available for this model.

What is the maximum discharge height of the JCB 3CX SM?

The JCB 3CX SM has a maximum discharge height of 2.74 meters.

What are the specifications of the primary work tool on the JCB 3CX SM backhoe loader?

The primary work tool of the JCB 3CX SM backhoe loader has a bucket capacity of 1 cubic meter and a bucket width of 2.35 meters.
