3CX Plus JCB 3CX Plus Specifications & Technical Data (2021—2026)

The JCB 3CX Plus is a backhoe loader manufactured by JCB since 2021. It has a weight of 8.1 tons and a transport length of 5.62 me…

The JCB 3CX Plus is a backhoe loader manufactured by JCB since 2021. It has a weight of 8.1 tons and a transport length of 5.62 meters. The bucket capacity is 1 cubic meter, and it can dredge up to a depth of 4.24 meters. The bucket width is 2.35 meters, and it can reach a maximum discharge height of 2.74 meters. The maximum horizontal reach is 5.37 meters. It has a travel speed of 40 km/h and a transport width of 2.35 meters. The transport height is 3.61 meters.

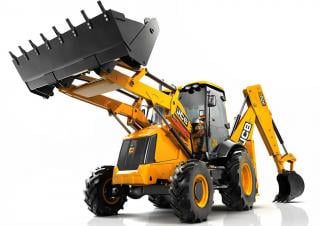

Backhoe Loaders JCB 3CX Plus
Backhoe Loaders JCB 3CX Plus
Backhoe Loaders JCB 3CX Plus
Backhoe Loaders JCB 3CX Plus
Backhoe Loaders JCB 3CX Plus
Backhoe Loaders JCB 3CX Plus
Backhoe Loaders JCB 3CX Plus
Backhoe Loaders JCB 3CX Plus
Backhoe Loaders JCB 3CX Plus
Backhoe Loaders JCB 3CX Plus
Backhoe Loaders JCB 3CX Plus
Backhoe Loaders JCB 3CX Plus

Visit JCB live at

Technical specs - 3CX Plus JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.1 t
Standard tyres
12.5x18-10/18.4x26-12
Bucket width
2.35 m
Bucket capacity
1 m³
Drive
A
Transport length
5.62 m
Transport width
2.35 m
Transport height
3.61 m
Tear-out force
53.3 kN
Max. Reach horizontal
5.37 m
Dredging depth
4.24 m
Max. discharge height
2.74 m
Travel speed
40 km/h
Model series
CX
Engine manuf.
JCB
Engine type
EcoMax
Engine power
81 kW
Displacement
4.8 l
Revolutions at max torque
1450 rpm
Max. torque
516 Nm
No. of cylinders
4
Cylinder bore x stroke
106x112 mm
Emission level
V

More technical details, like: bucket capacity backhoe, tear-out force backhoe, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
Yes
Clamshell
Yes
Forklift utility
Yes
Grabber
No
Diesel particulate filter
Yes
Aircondition
Yes

Download datasheets (PDF)

JCB 3CX Plus FAQ

When was the JCB 3CX Plus manufactured?

The JCB 3CX Plus was first produced in 2021.

How much does the JCB 3CX Plus backhoe loader weigh?

The JCB 3CX Plus backhoe loader weighs 8.1 tons.

What are the transport dimensions of the JCB 3CX Plus backhoe loader?

The JCB 3CX Plus has a transport length of 5.62 meters, a transport width of 2.35 meters, and a transport height of 3.61 meters.

What is the travel speed of the JCB 3CX Plus backhoe loader?

The JCB 3CX Plus backhoe loader has a travel speed of 40 km/h.

What are the undercarriage specifications of the JCB 3CX Plus backhoe loader?

The JCB 3CX Plus backhoe loader has an all-wheel drive system and standard tyres sized 12.5x18-10/18.4x26-12.

What are the excavation performance specifications of the JCB 3CX Plus backhoe loader?

The JCB 3CX Plus backhoe loader has a dredging depth of 4.24 meters and a maximum horizontal reach of 5.37 meters.

What is the tear-out force of the JCB 3CX Plus backhoe loader?

The JCB 3CX Plus backhoe loader has a tear-out force of 53.3 kN.

What is the maximum discharge height of the JCB 3CX Plus backhoe loader?

The JCB 3CX Plus backhoe loader has a maximum discharge height of 2.74 meters.

What are the specifications of the primary work tool bucket on the JCB 3CX Plus?

The primary work tool bucket of the JCB 3CX Plus has a capacity of 1 cubic meter and a width of 2.35 meters.
