3CX Eco JCB 3CX Eco Specifications & Technical Data (2009—2017)

The JCB 3CX Eco is a backhoe loader manufactured by JCB from 2009 to 2017. It has a weight of 7.7 tons and a transport length of 5…

The JCB 3CX Eco is a backhoe loader manufactured by JCB from 2009 to 2017. It has a weight of 7.7 tons and a transport length of 5.62 meters. The bucket capacity is 1.1 cubic meters, with a tear-out force of 64.04 kN. It can dredge up to a depth of 4.24 meters and has a bucket width of 2.35 meters. The maximum discharge height is 2.74 meters, and it can reach horizontally up to 5.37 meters. The travel speed is 40 km/h. The transport width is 2.35 meters, and the transport height is 3.61 meters. The backhoe has a bucket capacity of 0.26 cubic meters and a tear-out force of 62.01 kN.

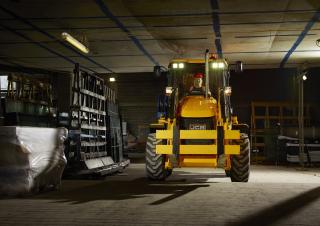

Backhoe Loaders JCB 3CX Eco

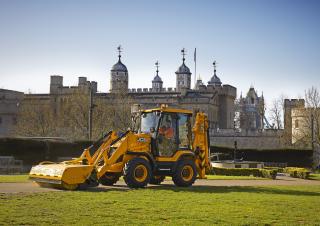

Backhoe Loaders JCB 3CX Eco
Backhoe Loaders JCB 3CX Eco
Backhoe Loaders JCB 3CX Eco
Backhoe Loaders JCB 3CX Eco
Backhoe Loaders JCB 3CX Eco
Backhoe Loaders JCB 3CX Eco
Backhoe Loaders JCB 3CX Eco
Backhoe Loaders JCB 3CX Eco
Backhoe Loaders JCB 3CX Eco
Backhoe Loaders JCB 3CX Eco
Backhoe Loaders JCB 3CX Eco

Visit JCB live at

Technical specs - 3CX Eco JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7.7 t
Standard tyres
12.5 x 18 x 10/16.9 x 28. 12PR
Bucket width
2.35 m
Bucket capacity
1.1 m³
Bucket capacity backhoe
0.26 m³
Drive
A
Transport length
5.62 m
Transport width
2.35 m
Transport height
3.61 m
Tear-out force
64.04 kN
Tear-out force backhoe
62.01 kN
Max. Reach horizontal
5.37 m
Dredging depth
4.24 m
Max. discharge height
2.74 m
Travel speed
40 km/h
Model series
CX
Engine manuf.
JCB
Engine type
444
Engine power
55 kW
Displacement
4.4 l
Revolutions at max torque
1200 rpm
Max. torque
400 Nm
No. of cylinders
4
Cylinder bore x stroke
103x132 mm
Emission level
III B

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
No
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download datasheets (PDF)

JCB 3CX Eco FAQ

When was the JCB 3CX Eco manufactured?

The JCB 3CX Eco was manufactured from 2009 to 2017.

How much does the JCB 3CX Eco backhoe loader weigh?

The JCB 3CX Eco backhoe loader weighs 7.7 tons.

What are the transport dimensions of the JCB 3CX Eco backhoe loader?

The JCB 3CX Eco has a transport length of 5.62 meters, a transport width of 2.35 meters, and a transport height of 3.61 meters.

What is the travel speed of the JCB 3CX Eco backhoe loader?

The JCB 3CX Eco has a travel speed of 40 km/h.

What are the undercarriage specifications of the JCB 3CX Eco backhoe loader?

The JCB 3CX Eco backhoe loader has an all-wheel drive system and standard tyres sized 12.5 x 18 x 10/16.9 x 28. 12PR.

What are the excavation performance specifications of the JCB 3CX Eco backhoe loader?

The JCB 3CX Eco has a dredging depth of 4.24 meters and a maximum horizontal reach of 5.37 meters.

What are the tear-out forces of the JCB 3CX Eco backhoe loader?

The JCB 3CX Eco has a Tear-out force of 64.04 kN and a backhoe Tear-out force of 62.01 kN.

What is the maximum discharge height of the JCB 3CX Eco?

The JCB 3CX Eco has a maximum discharge height of 2.74 meters.

What are the primary work tool specifications of the JCB 3CX Eco backhoe loader?

The JCB 3CX Eco features a front bucket with a capacity of 1.1 cubic meters and a width of 2.35 meters, and a backhoe bucket with a capacity of 0.26 cubic meters.

How much is a JCB 3CX Eco Backhoe loader (2009u20132017) worth?

The residual value of the JCB 3CX Eco depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
