3CX-17 JCB 3CX-17 Specifications & Technical Data (2011—2017)

The JCB 3CX-17 is a backhoe loader manufactured by JCB from 2011 to 2017. It has a weight of 7.947 tons and a transport length of …

The JCB 3CX-17 is a backhoe loader manufactured by JCB from 2011 to 2017. It has a weight of 7.947 tons and a transport length of 7.49 meters. This construction machine can dredge up to a depth of 6.55 meters and has a bucket width of 2.44 meters. The maximum discharge height is 7.04 meters, and it has a maximum reach horizontal of 8.71 meters. The travel speed of this backhoe loader is 36 kilometers per hour. It has a transport width and height of 2.44 meters and 4.14 meters respectively. The backhoe bucket capacity is 0.32 cubic meters.

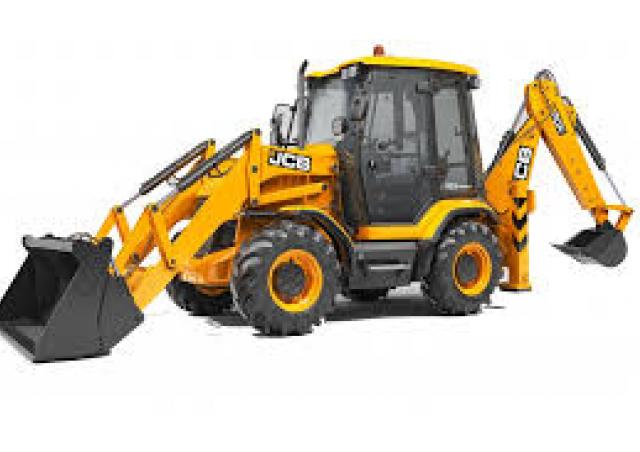

Backhoe Loaders JCB 3CX-17

Visit JCB live at

Technical specs - 3CX-17 JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7.947 t
Standard tyres
R: 19.5L-24 R4. F: 14-17.5 FWD
Bucket width
2.44 m
Bucket capacity backhoe
0.32 m³
Transport length
7.49 m
Transport width
2.44 m
Transport height
4.14 m
Max. Reach horizontal
8.71 m
Dredging depth
6.55 m
Max. discharge height
7.04 m
Travel speed
36 km/h
Engine manuf.
JCB
Engine type
DieselMax
Engine power
74 kW
Displacement
4.4 l
Revolutions at max torque
2200 rpm
Max. torque
440 Nm
No. of cylinders
4

More technical details, like: bucket capacity, drive, tear-out force, tear-out force backhoe, model series, dimension lxwxh, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
No
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download datasheets (PDF)

JCB 3CX-17 FAQ

When was the JCB 3CX-17 manufactured?

The JCB 3CX-17 was manufactured from 2011 to 2017.

How much does the JCB 3CX-17 backhoe loader weigh?

The JCB 3CX-17 backhoe loader weighs 7.95 tons.

What are the transport dimensions of the JCB 3CX-17 backhoe loader?

The JCB 3CX-17 has a transport length of 7.49 meters, a transport width of 2.44 meters, and a transport height of 4.14 meters.

What is the travel speed of the JCB 3CX-17 backhoe loader?

The JCB 3CX-17 backhoe loader has a travel speed of 36 km/h.

What are the undercarriage specifications of the JCB 3CX-17 backhoe loader?

The JCB 3CX-17 backhoe loader is equipped with standard tyres: Rear tyres are 19.5L-24 R4 and Front tyres are 14-17.5 FWD.

What are the excavation performance specifications of the JCB 3CX-17 backhoe loader?

The JCB 3CX-17 backhoe loader has a dredging depth of 6.55 meters and a maximum horizontal reach of 8.71 meters.

What is the material handling capacity of the JCB 3CX-17 in terms of discharge height?

The JCB 3CX-17 has a maximum discharge height of 7.04 meters.

What are the specifications of the primary work tool on the JCB 3CX-17 backhoe loader?

The JCB 3CX-17 features a backhoe bucket with a width of 2.44 meters and a capacity of 0.32 cubic meters.

How much is a JCB 3CX-17 Backhoe loader (2011u20132017) worth?

The residual value of the JCB 3CX-17 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
