3CX-14 JCB 3CX-14 Specifications & Technical Data (2019—2026)

The JCB 3CX-14 is a backhoe loader manufactured by JCB since 2019. It has a weight of 7.3 tons and a transport length of 5.62 mete…

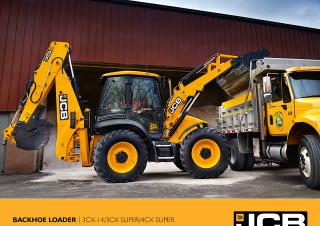

The JCB 3CX-14 is a backhoe loader manufactured by JCB since 2019. It has a weight of 7.3 tons and a transport length of 5.62 meters. The bucket width is 2.35 meters, and it has a maximum discharge height of 4.24 meters. The maximum reach horizontal is 5.53 meters, and the travel speed is 36.7 kilometers per hour. It has a transport width of 2.35 meters and a transport height of 3.61 meters. This construction machine is equipped with outrigger stabilizers as its special equipment.

Backhoe Loaders JCB 3CX-14

Visit JCB live at

Technical specs - 3CX-14 JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7.3 t
Standard tyres
14x17.5 10PR
Bucket width
2.35 m
Drive
A
Transport length
5.62 m
Transport width
2.35 m
Transport height
3.61 m
Max. Reach horizontal
5.53 m
Max. discharge height
4.24 m
Travel speed
36.7 km/h
Model series
CX
Engine manuf.
JCB
Engine type
EcoMax
Engine power
55 kW
Displacement
4.4 l
Revolutions at max torque
1200 rpm
Max. torque
400 Nm
No. of cylinders
4
Emission level
Tier 4 Final/Stage IV

More technical details, like: bucket capacity, bucket capacity backhoe, tear-out force, tear-out force backhoe, dredging depth, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
Yes
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download datasheets (PDF)

JCB 3CX-14 FAQ

When was the JCB 3CX-14 manufactured?

The JCB 3CX-14 was first produced in 2019.

How much does the JCB 3CX-14 backhoe loader weigh?

The JCB 3CX-14 backhoe loader weighs 7.3 tons.

What are the transport dimensions of the JCB 3CX-14 backhoe loader?

The JCB 3CX-14 has a transport length of 5.62 meters, a transport width of 2.35 meters, and a transport height of 3.61 meters.

What is the travel speed of the JCB 3CX-14 backhoe loader?

The JCB 3CX-14 backhoe loader has a travel speed of 36.7 km/h.

What are the undercarriage specifications of the JCB 3CX-14 backhoe loader?

The JCB 3CX-14 backhoe loader has an all-wheel drive system and is equipped with standard tyres sized 14x17.5 10PR.

What is the maximum horizontal reach of the JCB 3CX-14 during excavation?

The JCB 3CX-14 has a maximum horizontal reach of 5.53 meters during excavation.

What is the maximum discharge height of the JCB 3CX-14?

The JCB 3CX-14 has a maximum discharge height of 4.24 meters.

What is the bucket width of the JCB 3CX-14 backhoe loader?

The bucket width of the JCB 3CX-14 backhoe loader is 2.35 meters.

How much is a JCB 3CX-14 Backhoe loader (2019u20132025) worth?

The residual value of the JCB 3CX-14 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
