3 CX SM JCB 3 CX SM Specifications & Technical Data (2002—2007)

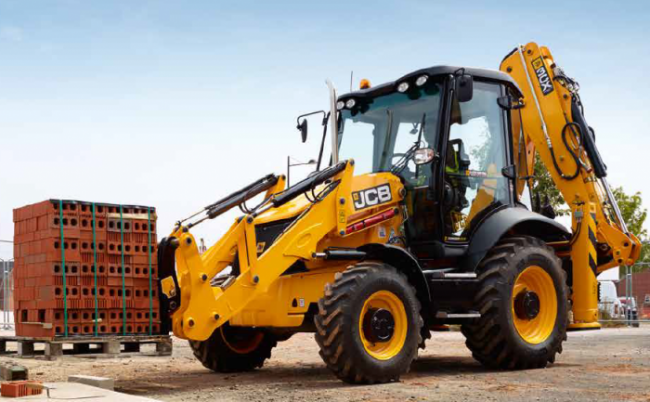

The JCB 3 CX SM is a backhoe loader manufactured by JCB from 2002 to 2007. It has a weight of 8 tons and a transport length of 5.6…

The JCB 3 CX SM is a backhoe loader manufactured by JCB from 2002 to 2007. It has a weight of 8 tons and a transport length of 5.62 meters. The bucket capacity is 1 cubic meter, with a tear-out force of 29.53 kN. It has a dredging depth of 5.97 meters and a bucket width of 2.35 meters. The maximum discharge height is 2.74 meters and the maximum reach horizontal is 6.35 meters. The transport width is 2.36 meters and the transport height is 3.61 meters. It is equipped with special equipment including a clamshell, forklift utility, and outrigger stabilizers.

Visit JCB live at

3 CX SM

Years of manufacture: 2002—2007

Buy & Rent
Valuate & Sell
Spare parts
Transport
Events
News

Technical specs - 3 CX SM JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 8 t

Standard tyres: HR 18.4-26 VR 12.5x18-10PR

Bucket width: 2.35 m

Bucket capacity: 1 m³

Drive: A

Transport length: 5.62 m

Transport width: 2.36 m

Transport height: 3.61 m

Tear-out force: 29.53 kN

Max. Reach horizontal: 6.35 m

Dredging depth: 5.97 m

Max. discharge height: 2.74 m

Model series: CX

Engine manuf.: Perkins

Engine type: 1004.42

Engine power: 68.5 kW

Displacement: 3.99 l

Revolutions at max torque: 2200 rpm

More technical details, like: bucket capacity backhoe, tear-out force backhoe, travel speed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, backhoe type, engine manufacturer, engine model, aspiration, rated speed, engine output - net, engine output - gross, transmission type, number of travel speeds, drive - 2wd / 4wd, service brake type, length - roading, height - over cab, maximum height, width, ground clearance, width - standard shovel, stabiliser type, maximum dig depth - longest dipper, dig depth - sae, dig depth - sae retracted dipper, dig depth - sae extended dipper, reach from slew pivot - non-extending dipper, reach from slew pivot - retracted dipper, reach from slew pivot - extended dipper, loading height - non-extending dipper, loading height - retracted dipper, loading height - extended dipper, dump height - general purpose, dump angle - general purpose, dump height - multi-purpose, dump angle - multi-purpose, fuel tank, shovel capacity - standard general purpose, shovel capacity - multi-purpose, bucket tearout - non-extending dipper, dipper tearout - non-extending dipper, shovel breakout - general purpose, shovel breakout - multi-purpose, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: Yes
Clamshell: Yes
Forklift utility: Yes
Grabber: No
Diesel particulate filter: No
Aircondition: No

JCB 3 CX SM FAQ

When was the JCB 3 CX SM manufactured?

The JCB 3 CX SM was manufactured from 2002 to 2007.

How much does the JCB 3 CX SM backhoe loader weigh?

The JCB 3 CX SM backhoe loader weighs 8 tons.

What are the transport dimensions of the JCB 3 CX SM backhoe loader?

The JCB 3 CX SM has a transport length of 5.62 meters, a transport width of 2.36 meters, and a transport height of 3.61 meters.

What are the undercarriage specifications of the JCB 3 CX SM backhoe loader?

The JCB 3 CX SM features an all-wheel drive system with standard tyres sized Rear: 18.4-26 and Front: 12.5x18-10PR.

What are the excavation performance specifications of the JCB 3 CX SM backhoe loader?

The JCB 3 CX SM backhoe loader has a dredging depth of 5.97 meters and a maximum horizontal reach of 6.35 meters.

What is the tear-out force of the JCB 3 CX SM backhoe loader?

The JCB 3 CX SM backhoe loader has a tear-out force of 29.53 kN.

What is the material handling capacity of the JCB 3 CX SM in terms of maximum discharge height?

The JCB 3 CX SM has a maximum discharge height of 2.74 meters.

What are the specifications of the primary work tool on the JCB 3 CX SM backhoe loader?

The primary work tool of the JCB 3 CX SM has a bucket capacity of 1 cubic meter and a bucket width of 2.35 meters.
