215 E JCB 215 E Specifications & Technical Data (1997—2004)

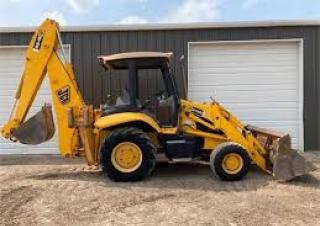

The JCB 215 E is a backhoe loader manufactured by JCB from 1997 to 2004. It has a weight of 7.231 tons and a transport length of 7…

The JCB 215 E is a backhoe loader manufactured by JCB from 1997 to 2004. It has a weight of 7.231 tons and a transport length of 7.49 meters. This construction machine can dredge up to a depth of 6.12 meters and has a bucket width of 2.34 meters. The maximum discharge height is 6.4 meters, and it has a maximum reach horizontal of 8.2 meters. The travel speed of this backhoe loader is 33.2 kilometers per hour. It has a transport width of 2.35 meters and a transport height of 3.89 meters.

Backhoe Loaders JCB 215 E

Visit JCB live at

Technical specs - 215 E JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7.231 t
Standard tyres
F: 11L-16 F3 12 ply. R: 19.5L-24 R4 10 ply
Bucket width
2.34 m
Drive
A
Transport length
7.49 m
Transport width
2.35 m
Transport height
3.89 m
Max. Reach horizontal
8.2 m
Dredging depth
6.12 m
Max. discharge height
6.4 m
Travel speed
33.2 km/h
Engine manuf.
Perkins
Engine type
1000
Engine power
67 kW
Displacement
4 l
Revolutions at max torque
2200 rpm
Max. torque
326 Nm
No. of cylinders
4
Cylinder bore x stroke
100x127 mm

More technical details, like: bucket capacity, bucket capacity backhoe, tear-out force, tear-out force backhoe, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
No
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download datasheets (PDF)

JCB 215 E FAQ

When was the JCB 215 E backhoe loader manufactured?

The JCB 215 E backhoe loader was manufactured from 1997 to 2004.

How much does the JCB 215 E backhoe loader weigh?

The JCB 215 E backhoe loader weighs 7.23 tons.

What are the transport dimensions of the JCB 215 E backhoe loader?

The JCB 215 E has a transport length of 7.49 meters, a transport width of 2.35 meters, and a transport height of 3.89 meters.

What is the travel speed of the JCB 215 E backhoe loader?

The JCB 215 E backhoe loader has a travel speed of 33.2 km/h.

What are the undercarriage specifications of the JCB 215 E backhoe loader?

The JCB 215 E backhoe loader has an all-wheel drive and is equipped with front tyres sized 11L-16 F3 12 ply and rear tyres sized 19.5L-24 R4 10 ply.

What are the excavation capabilities of the JCB 215 E backhoe loader?

The JCB 215 E backhoe loader has a dredging depth of 6.12 meters and a maximum horizontal reach of 8.2 meters.

What is the maximum discharge height of the JCB 215 E?

The JCB 215 E has a maximum discharge height of 6.4 meters.

What is the bucket width of the JCB 215 E backhoe loader?

The JCB 215 E backhoe loader has a bucket width of 2.34 meters.

How much is a JCB 215 E Backhoe loader (1997u20132004) worth?

The residual value of the JCB 215 E depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
