215 JCB 215 Specifications & Technical Data (1994—2004)

The JCB 215 is a backhoe loader manufactured by JCB from 1994 to 2004. It has a weight of 7.42 tons and a transport length of 7.49…

The JCB 215 is a backhoe loader manufactured by JCB from 1994 to 2004. It has a weight of 7.42 tons and a transport length of 7.49 meters. The bucket capacity is 0.96 cubic meters, with a dredging depth of 6.01 meters. It has a bucket width of 2.35 meters and a maximum discharge height of 6.42 meters. The maximum reach horizontal is 8.21 meters, and the travel speed is 33 kilometers per hour. It has a transport width of 2.35 meters and a transport height of 3.89 meters. The backhoe bucket capacity is 0.32 cubic meters.

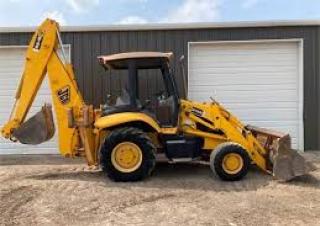

Backhoe Loaders JCB 215

Visit JCB live at

Technical specs - 215 JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
7.42 t
Standard tyres
F: 14.0x17.5 10PR. R: 19.5Lx24 10PR
Bucket width
2.35 m
Bucket capacity
0.96 m³
Bucket capacity backhoe
0.32 m³
Drive
A
Transport length
7.49 m
Transport width
2.35 m
Transport height
3.89 m
Max. Reach horizontal
8.21 m
Dredging depth
6.01 m
Max. discharge height
6.42 m
Travel speed
33 km/h
Engine manuf.
Perkins
Engine type
1004 4HR
Engine power
68 kW
Displacement
4 l
Revolutions at max torque
2200 rpm
Max. torque
325 Nm
No. of cylinders
4
Cylinder bore x stroke
100x127 mm

More technical details, like: tear-out force, tear-out force backhoe, model series, dimension lxwxh, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
No
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download datasheets (PDF)

JCB 215 FAQ

When was the JCB 215 manufactured?

The JCB 215 was manufactured from 1994 to 2004.

How much does the JCB 215 backhoe loader weigh?

The JCB 215 backhoe loader weighs 7.42 tons.

What are the transport dimensions of the JCB 215 backhoe loader?

The JCB 215 backhoe loader has a transport length of 7.49 meters, a transport width of 2.35 meters, and a transport height of 3.89 meters.

What is the travel speed of the JCB 215 backhoe loader?

The JCB 215 backhoe loader has a travel speed of 33 km/h.

What are the undercarriage specifications of the JCB 215 backhoe loader?

The JCB 215 backhoe loader has an all-wheel drive system and is equipped with front tyres sized 14.0x17.5 10PR and rear tyres sized 19.5Lx24 10PR.

What are the dredging depth and maximum horizontal reach of the JCB 215 backhoe loader?

The JCB 215 backhoe loader has a dredging depth of 6.01 meters and a maximum horizontal reach of 8.21 meters.

What is the maximum discharge height of the JCB 215?

The JCB 215 has a maximum discharge height of 6.42 meters.

What are the specifications of the primary work tool on the JCB 215 backhoe loader?

The JCB 215 features a bucket capacity of 0.96 cubic meters, a bucket width of 2.35 meters, and a backhoe bucket capacity of 0.32 cubic meters.

How much is a JCB 215 Backhoe loader (1994u20132004) worth?

The residual value of the JCB 215 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
