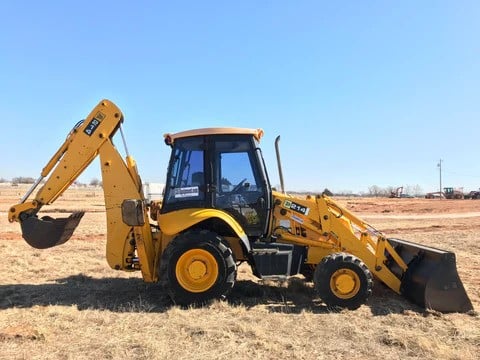

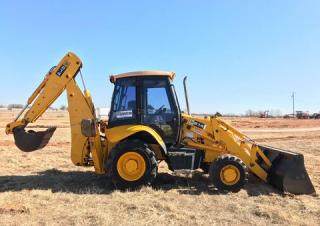

214 E JCB 214 E Specifications & Technical Data (1997—2004)
Visit JCB live at
.jpg){kind=logo}
Technical specs - 214 E JCB
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 6.75 t
- Standard tyres
- F: 11L-16 F3 12 ply. R: 19.5L-24 R4 10 ply
- Bucket width
- 2.24 m
- Bucket capacity backhoe
- 0.3 m³
- Drive
- A
- Transport length
- 7.19 m
- Transport width
- 2.24 m
- Transport height
- 3.43 m
- Max. Reach horizontal
- 6.63 m
- Dredging depth
- 4.45 m
- Max. discharge height
- 5.38 m
- Travel speed
- 33.2 km/h
- Engine manuf.
- Perkins
- Engine type
- 1000
- Engine power
- 56 kW
- Displacement
- 4 l
- Revolutions at max torque
- 2200 rpm
- Max. torque
- 284 Nm
- No. of cylinders
- 4
- Cylinder bore x stroke
- 100x127 mm
More technical details, like: bucket capacity, tear-out force, tear-out force backhoe, model series, dimension lxwxh, emission level are available in the full technical specs.
Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket
Special equipment
- Outrigger stabilisers
-
No
- Clamshell
-
No
- Forklift utility
-
No
- Grabber
-
No
- Diesel particulate filter
-
No
- Aircondition
-
No
Download datasheets (PDF)
JCB 214 E FAQ
How much does the JCB 214 E backhoe loader weigh?
What are the transport dimensions of the JCB 214 E backhoe loader?
What is the travel speed of the JCB 214 E backhoe loader?
What are the undercarriage specifications of the JCB 214 E backhoe loader?
What are the dredging depth and maximum horizontal reach of the JCB 214 E backhoe loader?
What is the material handling capacity of the JCB 214 E in terms of maximum discharge height?
What are the specifications of the backhoe bucket on the JCB 214 E?
How much is a JCB 214 E Backhoe loader (1997u20132004) worth?
