2 DX JCB 2 DX Specifications & Technical Data (2012—2022)

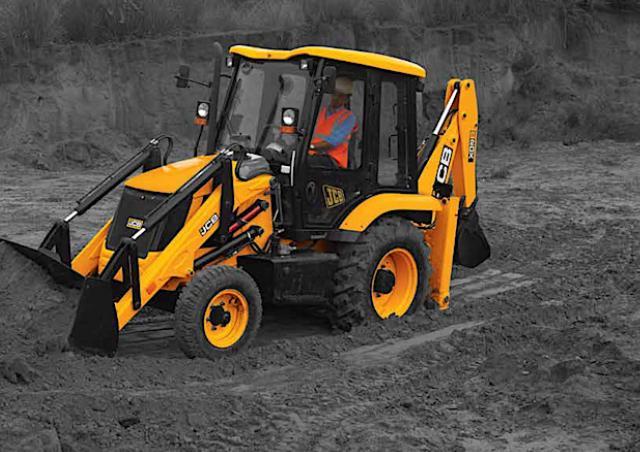

The JCB 2 DX is a backhoe loader manufactured by JCB from 2012 to 2022. It has a weight of 4.53 tons and a transport length of 5.5…

The JCB 2 DX is a backhoe loader manufactured by JCB from 2012 to 2022. It has a weight of 4.53 tons and a transport length of 5.5 meters. The tear-out force is 17.16 kilonewtons, and it can dredge up to a depth of 3.02 meters. The bucket width is 1.88 meters, and the maximum discharge height is 3.88 meters. It has a maximum reach horizontal of 5.18 meters and a travel speed of 28 kilometers per hour. The transport width and height are both 1.88 meters and 2.47 meters, respectively. The backhoe bucket capacity is 0.18 cubic meters, with a tear-out force of 30.5 kilonewtons.

Backhoe Loaders JCB 2 DX

Visit JCB live at

Technical specs - 2 DX JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
4.53 t
Standard tyres
F:7.5x16-16PR. R: 14.9x24-12PR
Bucket width
1.88 m
Bucket capacity backhoe
0.18 m³
Transport length
5.5 m
Transport width
1.88 m
Transport height
2.47 m
Tear-out force
17.16 kN
Tear-out force backhoe
30.5 kN
Max. Reach horizontal
5.18 m
Dredging depth
3.02 m
Max. discharge height
3.88 m
Travel speed
28 km/h
Engine manuf.
KOEL
Engine type
4R810
Engine power
49.5 HP
Displacement
3.2 l
Revolutions at max torque
2200 rpm
Max. torque
203 Nm
No. of cylinders
4

More technical details, like: bucket capacity, drive, model series, dimension lxwxh, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
No
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download datasheets (PDF)

JCB 2 DX FAQ

When was the JCB 2 DX backhoe loader manufactured?

The JCB 2 DX backhoe loader was manufactured from 2012 to 2022.

How much does the JCB 2 DX backhoe loader weigh?

The JCB 2 DX backhoe loader weighs 4.53 tons.

What are the transport dimensions of the JCB 2 DX backhoe loader?

The JCB 2 DX has a transport length of 5.5 meters, a transport width of 1.88 meters, and a transport height of 2.47 meters.

What is the travel speed of the JCB 2 DX backhoe loader?

The JCB 2 DX backhoe loader has a travel speed of 28 km/h.

What are the standard tyre specifications for the undercarriage of the JCB 2 DX backhoe loader?

The JCB 2 DX backhoe loader has standard tyres sized Front: 7.5x16-16PR and Rear: 14.9x24-12PR.

What are the excavation specifications of the JCB 2 DX backhoe loader?

The JCB 2 DX backhoe loader has a dredging depth of 3.02 meters and a maximum horizontal reach of 5.18 meters.

What are the tear-out forces of the JCB 2 DX backhoe loader?

The JCB 2 DX has a tear-out force of 17.16 kN and a backhoe tear-out force of 30.5 kN.

What is the material handling capacity of the JCB 2 DX in terms of maximum discharge height?

The JCB 2 DX has a maximum discharge height of 3.88 meters.

What are the specifications of the backhoe bucket on the JCB 2 DX?

The backhoe bucket of the JCB 2 DX has a width of 1.88 meters and a capacity of 0.18 cubic meters.

How much is a JCB 2 DX Backhoe loader (2012u20132022) worth?

The residual value of the JCB 2 DX depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
