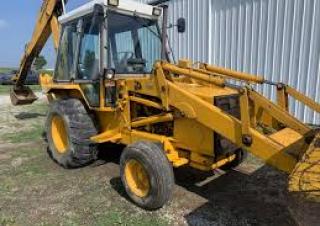

1550 B JCB 1550 B Specifications & Technical Data (1990—1995)
Visit JCB live at
.jpg){kind=logo}
Technical specs - 1550 B JCB
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 7.393 t
- Standard tyres
- F: 12.5Lx16 12PR. R: 19.5x24 12PR
- Bucket width
- 2.44 m
- Bucket capacity
- 0.96 m³
- Bucket capacity backhoe
- 0.29 m³
- Drive
- A
- Transport length
- 7.65 m
- Transport width
- 2.44 m
- Transport height
- 3.89 m
- Max. Reach horizontal
- 8.76 m
- Dredging depth
- 6.02 m
- Max. discharge height
- 6.45 m
- Travel speed
- 33.2 km/h
- Engine manuf.
- Perkins
- Engine type
- 1004 THR
- Engine power
- 62 kW
- Displacement
- 4 l
- Revolutions at max torque
- 2200 rpm
- Max. torque
- 309 Nm
- No. of cylinders
- 4
- Cylinder bore x stroke
- 100x127 mm
More technical details, like: tear-out force, tear-out force backhoe, model series, dimension lxwxh, emission level are available in the full technical specs.
Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket
Special equipment
- Outrigger stabilisers
-
No
- Clamshell
-
No
- Forklift utility
-
No
- Grabber
-
No
- Diesel particulate filter
-
No
- Aircondition
-
No
Download datasheets (PDF)
JCB 1550 B FAQ
How much does the JCB 1550 B backhoe loader weigh?
What are the transport dimensions of the JCB 1550 B backhoe loader?
What is the travel speed of the JCB 1550 B backhoe loader?
What are the undercarriage specifications of the JCB 1550 B backhoe loader?
What is the excavation performance of the JCB 1550 B backhoe loader?
What is the maximum discharge height of the JCB 1550 B?
What are the specifications of the primary work tools on the JCB 1550 B backhoe loader?
How much is a JCB 1550 B Backhoe loader (1990u20131995) worth?
Events
Visit JCB live at
.jpg){kind=logo}
Machine inspection
Ask for inspection of your JCB 1550 B from experts
Mevas is an international operating inspection service for used heavy machinery. Construction machinery inspectors are available in more than 20 countries.
Use this service to minimise the risk when buying used equipment. An inspection by Mevas costs less than repairing a defective hydraulic cylinder.
Provided by:
Buy & Rent
Compare JCB 1550 B with similar Backhoe Loaders
JCB 1550 B
- Weight:
- 7.393 t
- Standard tyres:
- F: 12.5Lx16 12PR. R: 19.5x24 12PR
- Bucket width:
- 2.44 m
- Bucket capacity:
- 0.96 m³
John Deere Construction 310L
- Weight:
- 6.65 t
- Standard tyres:
- F:12.5/80-18 F3 (12) R: 19.5-24 R4 (12)
- Bucket width:
- 2.18 m
- Bucket capacity:
- 0.77 m³
New Holland 655 D
- Weight:
- 7.52 t
- Standard tyres:
- 16.5/85-28
- Bucket capacity:
- 1 m³
Terex-Fermec 760
- Weight:
- 8.2 t
- Standard tyres:
- 16.9x30
- Bucket capacity:
- 1 m³
Fiat-Hitachi FB 100
- Weight:
- 8.1 t
- Standard tyres:
- 18.4-26/12.5-80
- Bucket capacity:
- 1 m³
